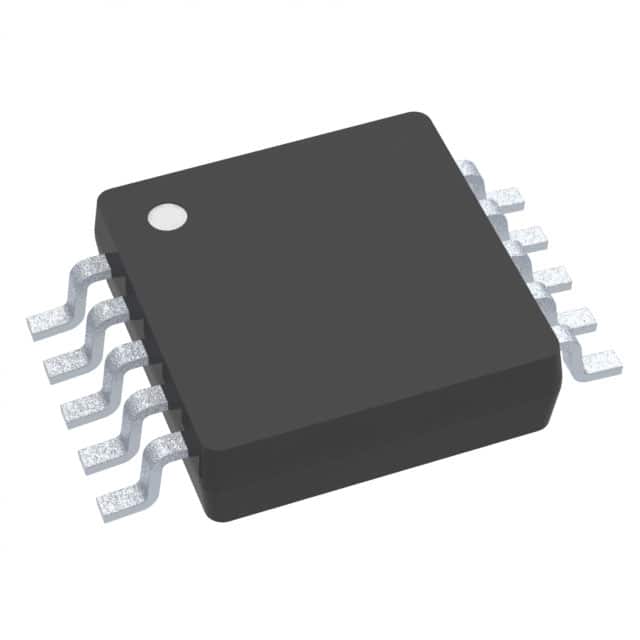

ADS1118IDGST
IC ADC 16BIT SIGMA-DELTA 10VSSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS1118IDGST is a 16-bit analog-to-digital converter featuring a sigma-delta architecture. This device offers a configurable input multiplexer (MUX) and programmable gain amplifier (PGA), supporting both differential and single-ended input signals across its 2 or 4 input channels. With an SPI data interface, it facilitates efficient data transfer. The ADS1118IDGST integrates a temperature sensor, further enhancing its utility. Its compact 10-VSSOP package is suitable for surface mount applications. Operating within analog and digital supply voltages of 2V to 5.5V, this component is designed for operation across an industrial temperature range of -40°C to 125°C. It is commonly utilized in industrial automation, portable instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA, Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2V ~ 5.5V |
| Voltage - Supply, Digital | 2V ~ 5.5V |
| Sampling Rate (Per Second) | 860 |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 10-VSSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
Request a Quote
