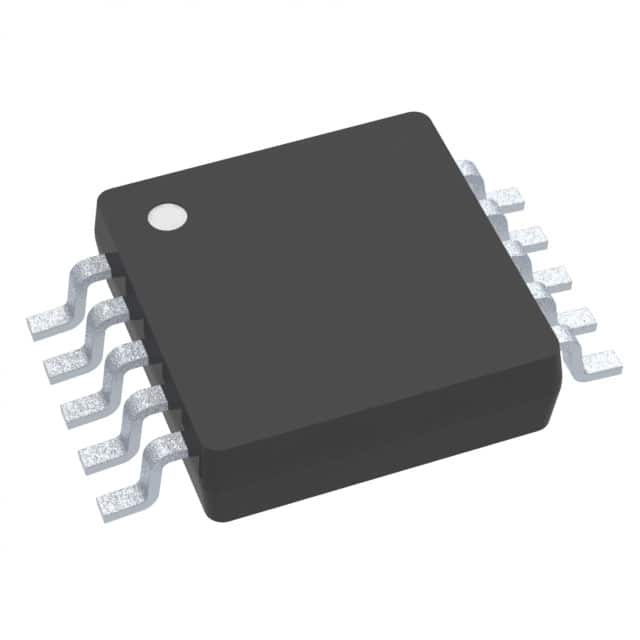

ADS1115IDGST
IC ADC 16BIT SIGMA-DELTA 10VSSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS1115IDGST is a 16-bit Analog-to-Digital Converter (ADC) featuring a Sigma-Delta architecture. This device offers a flexible input configuration with 2 differential or 4 single-ended inputs. It supports an I2C data interface and includes a programmable gain amplifier (PGA) for precise signal conditioning, along with selectable address pins. The ADS1115IDGST operates from a 2V to 5.5V analog and digital supply voltage, and its internal reference ensures stable operation across its -40°C to 125°C temperature range. With a sampling rate of 860 samples per second, this component is ideal for applications requiring accurate analog-to-digital conversion in sectors such as industrial automation, consumer electronics, and portable measurement equipment. The device is supplied in a 10-VSSOP package and is available on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA, Selectable Address |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | MUX-PGA-ADC |
| Data Interface | I2C |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2V ~ 5.5V |
| Voltage - Supply, Digital | 2V ~ 5.5V |
| Sampling Rate (Per Second) | 860 |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 10-VSSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
