ADC16DX370RMET
IC ADC 16BIT PIPELINED 56WQFNManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

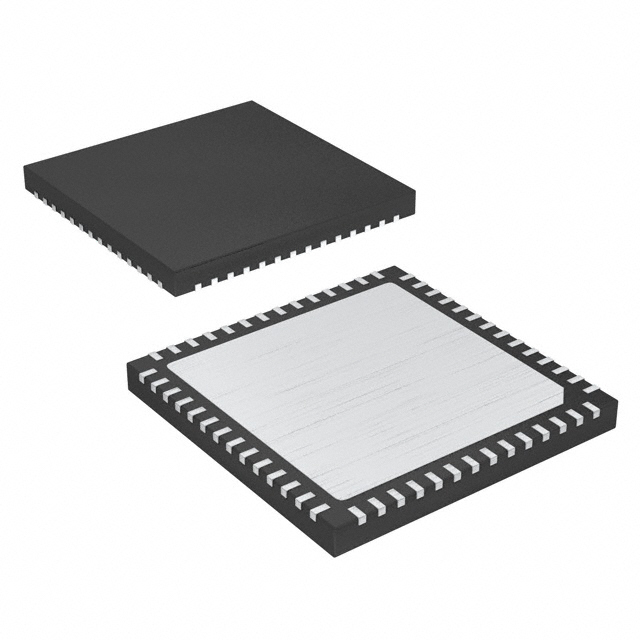

Texas Instruments ADC16DX370RMET is a 16-bit, 370 MSPS Analog-to-Digital Converter featuring a pipelined architecture. This component offers two differential inputs and supports simultaneous sampling. The JESD204B data interface ensures high-speed serial communication. Designed for surface mount applications, it is supplied in a 56-WQFN (8x8) package with an exposed pad, delivered on tape and reel. Operating across a temperature range of -40°C to 85°C, it utilizes an analog supply voltage from 1.15V to 3.45V and a digital supply of 1.15V to 1.25V. This device is suitable for demanding applications in test and measurement, medical imaging, and high-speed communications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | ADC |
| Data Interface | JESD204B |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.15V ~ 3.45V |
| Voltage - Supply, Digital | 1.15V ~ 1.25V |
| Sampling Rate (Per Second) | 370M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 56-WQFN (8x8) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
