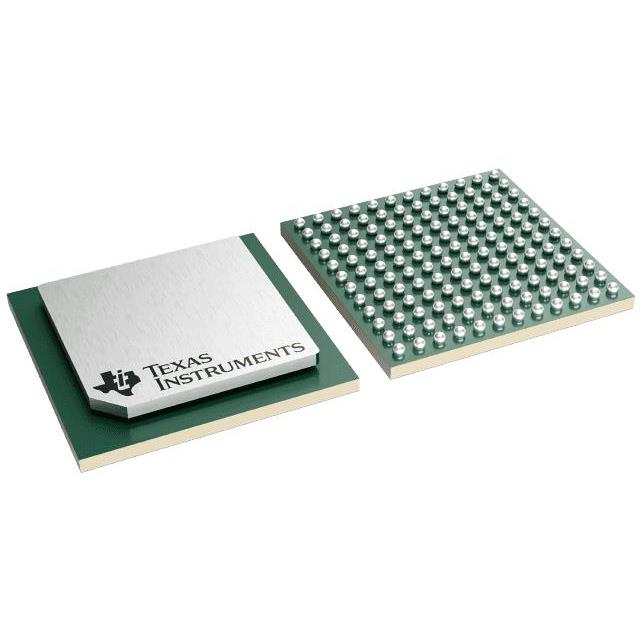

ADC12DJ5200ALREP
ENHANCED-PRODUCT 12-BIT ADC WITHManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 2, 4 Input 2 Folding Interpolating 144-FCBGA (10x10)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 144-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-MUX-ADC |
| Data Interface | JESD204B, JESD204C |
| Reference Type | External, Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | 1.05V ~ 1.15V, 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.05V ~ 1.15V |
| Sampling Rate (Per Second) | 5.2G, 10.4G |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 144-FCBGA (10x10) |
| Architecture | Folding Interpolating |
| Ratio - S/H:ADC | 1:1, 2:2 |
| Number of A/D Converters | 2 |
Request a Quote
