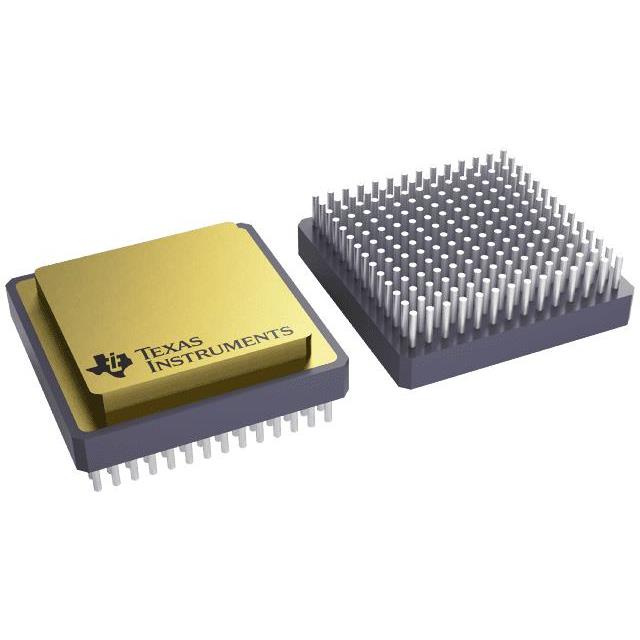

ADC12DJ3200NWE/EM
EVAL BOARDManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 2 Input 2 Pipelined, SAR 196-CCGA (27.94x27.94)
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Box |
| Package / Case | 196-BCPGA |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | MUX-ADC |
| Data Interface | JESD204B |
| Reference Type | External, Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | 1.05V ~ 1.15V, 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.05V ~ 1.15V |
| Sampling Rate (Per Second) | 6.4G |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 196-CCGA (27.94x27.94) |
| Architecture | Pipelined, SAR |
| Ratio - S/H:ADC | 0:2 |
| Number of A/D Converters | 2 |
