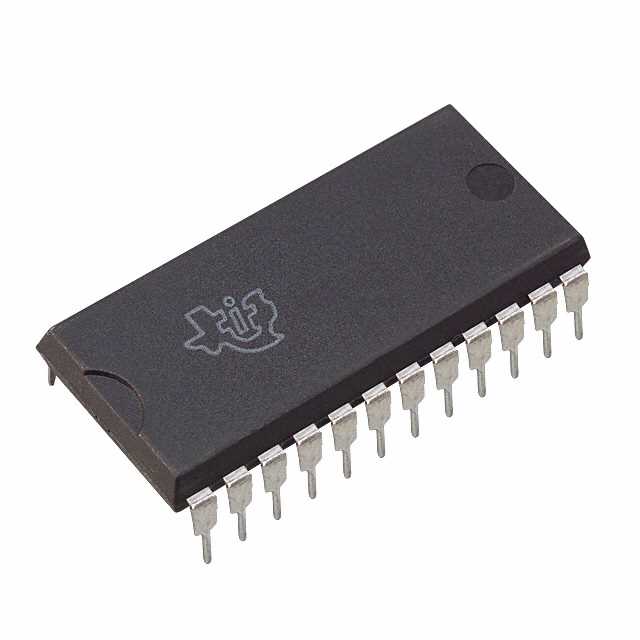

ADC1251CIJ
IC ADC 12BIT SAR 24CDIPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADC1251CIJ is a 12-bit successive approximation analog-to-digital converter (ADC). This single-channel device features a 1:1 Sample-and-Hold to ADC ratio and utilizes an external reference. The ADC1251CIJ offers flexible data interfacing via SPI and DSP protocols. Designed for through-hole mounting, it is supplied in a 24-CDIP package. This component operates across an industrial temperature range of -40°C to 85°C and is suitable for applications requiring precise analog signal conversion in areas such as industrial automation and test and measurement equipment. Analog and digital supply voltages are specified as ±5V.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 24-CDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | ±5V |
| Sampling Rate (Per Second) | - |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 24-CDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
