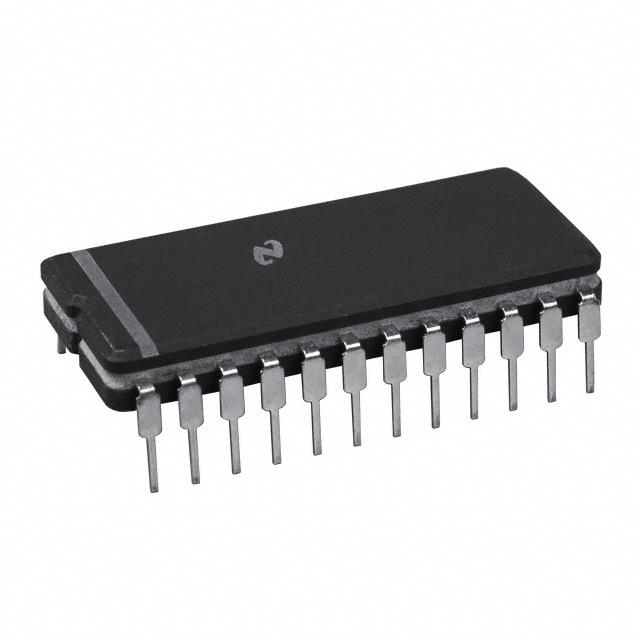

ADC12451CIJ
IC ADC 12BIT SAR 24CDIPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Texas Instruments ADC12451CIJ is a 12-bit, 1-input successive approximation analog-to-digital converter. This component features a single-ended input and a 1:1 S/H-ADC ratio. The data interface is parallel, and the device operates with ±5V analog supply voltage and a 5V digital supply voltage. The ADC12451CIJ is housed in a 24-CDIP (0.600", 15.24mm) package, designed for through-hole mounting. Its operating temperature range is -40°C to 85°C. This converter is utilized in various applications including industrial control systems and instrumentation.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 24-CDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | - |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 24-CDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
