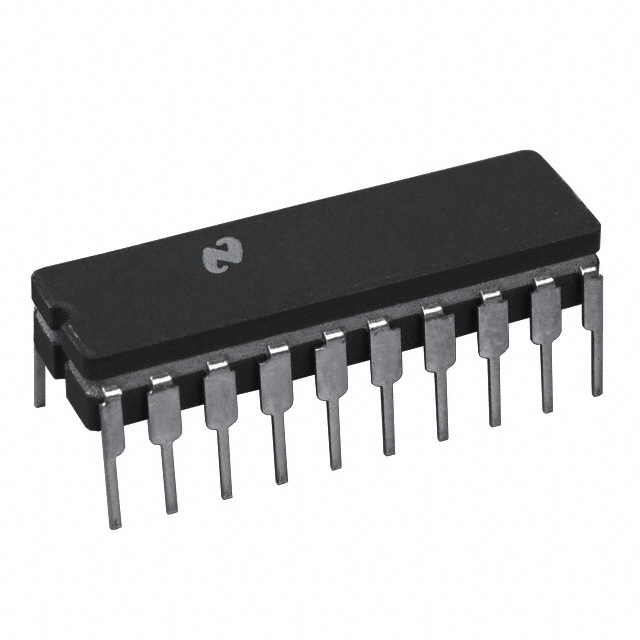

ADC1001CCJ
IC ADC 10BIT SAR 20CDIPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADC1001CCJ is a 10-bit successive approximation analog-to-digital converter (ADC) housed in a 20-CDIP package. This device offers a single differential input and features an internal reference. Operating with analog and digital supply voltages ranging from 4.5V to 6.3V, it is designed for a wide operating temperature range of -40°C to 85°C. The parallel data interface facilitates integration into various system architectures. This component is commonly utilized in industrial control systems and data acquisition applications where precise conversion of analog signals is critical. The 20-CDIP (0.300", 7.62mm) through-hole mounting package ensures robust connectivity.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-CDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 10 |
| Configuration | ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 4.5V ~ 6.3V |
| Voltage - Supply, Digital | 4.5V ~ 6.3V |
| Sampling Rate (Per Second) | - |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 20-CDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
