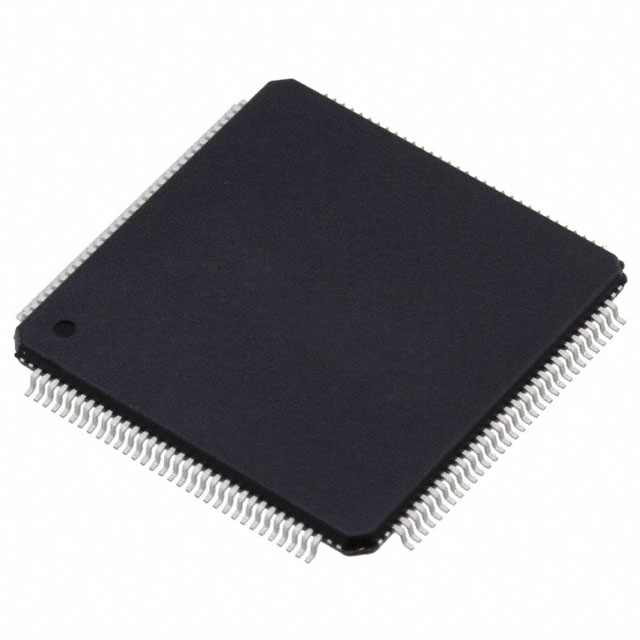

ADC08D1500CIYB
IC ADC 8BIT FOLD INTERP 128HLQFPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADC08D1500CIYB is an 8-bit Analog to Digital Converter featuring a folding interpolating architecture. This device offers a sampling rate of up to 1.5 Giga-samples per second, supporting dual inputs with simultaneous sampling. The data interface utilizes LVDS for parallel output. Designed for surface mount applications, it comes in a 128-HLQFP (20x20) package. Operating temperature ranges from -40°C to 85°C with analog and digital supply voltages between 1.8V and 2V. Its configuration includes MUX-S/H-ADC, and it supports differential input types. This component is suitable for high-speed data acquisition systems in telecommunications, medical imaging, and test and measurement equipment.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tray |
| Package / Case | 128-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | MUX-S/H-ADC |
| Data Interface | LVDS - Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.8V ~ 2V |
| Sampling Rate (Per Second) | 1.5G |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 128-HLQFP (20x20) |
| Architecture | Folding Interpolating |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
