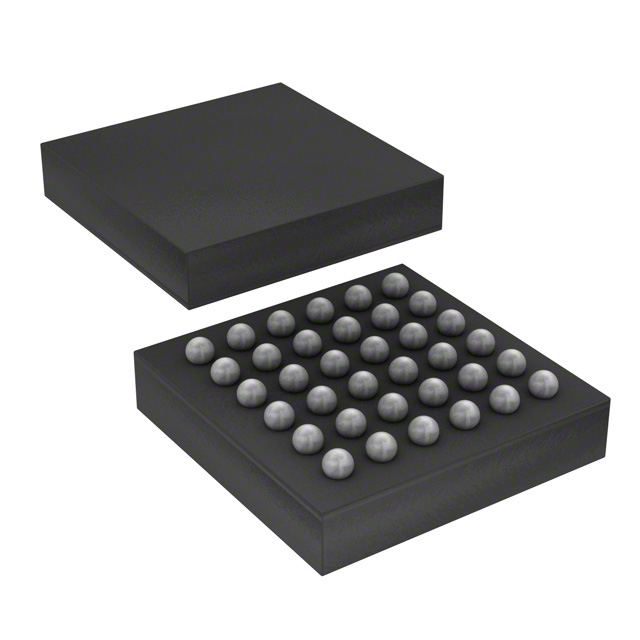

TS5MP645YFPR
IC SWITCH SPDTX10 6.5OHM 36DSBGAManufacturer: Texas Instruments
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Texas Instruments TS5MP645YFPR is a 10-circuit, 2:1 analog switch designed with a low on-resistance of 6.5 Ohms. This SPDT switch offers a -3dB bandwidth of 1.5GHz, making it suitable for high-frequency signal routing. Key performance characteristics include a minimal channel capacitance of 1.5pF and excellent channel-to-channel matching with a maximum delta Ron of 100mOhm. Crosstalk is rated at -40dB at 1.25GHz. The device operates from a single supply voltage ranging from 1.65V to 5.5V and has a maximum leakage current of 500nA. Mounted via surface mount, the TS5MP645YFPR is supplied in a 36-DSBGA package, presented on a Tape & Reel. This component finds application in consumer electronics and mobile devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-XFBGA, DSBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| On-State Resistance (Max) | 6.5Ohm |
| -3db Bandwidth | 1.5GHz |
| Supplier Device Package | 36-DSBGA |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -40dB @ 1.25GHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | 1.5pF |
| Current - Leakage (IS(off)) (Max) | 500nA |
| Number of Circuits | 10 |
