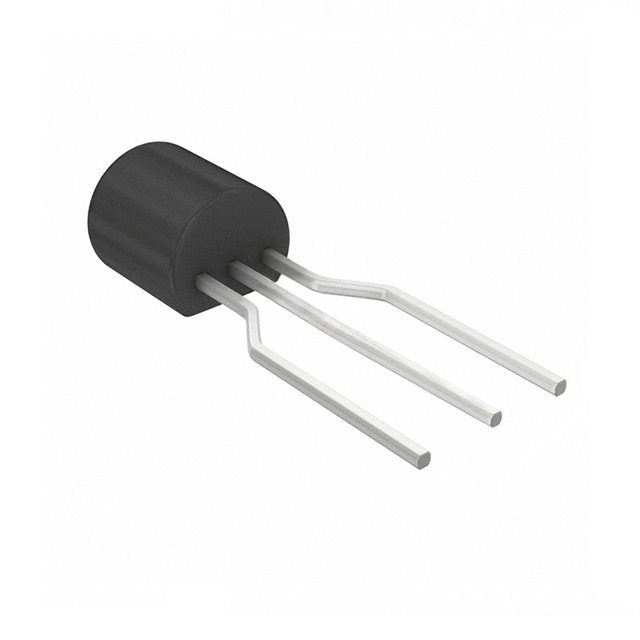

TS3A44159TD1
IC SWITCH SPDT X 4 450MOHM DIEManufacturer: Texas Instruments
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Texas Instruments TS3A44159TD1 is a 4-circuit, 2:1 multiplexer/demultiplexer IC. This SPDT switch features a low on-resistance of 450mOhm maximum and excellent channel-to-channel matching with 50mOhm delta Ron. With a -3dB bandwidth of 35MHz and typical charge injection of 139pC, it is suitable for applications requiring high-speed signal routing. Crosstalk is maintained at -73dB at 100kHz, and leakage current is a maximum of 20nA. The device operates from a single supply voltage of 1.65V to 4.3V. This surface-mount component is provided in a die package, supplied in a tube. It finds application in various electronic systems, including audio and video switching, signal routing in portable devices, and general-purpose analog signal selection.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Die |
| Mounting Type | Surface Mount |
| Operating Temperature | 25°C |
| On-State Resistance (Max) | 450mOhm |
| -3db Bandwidth | 35MHz |
| Supplier Device Package | Die |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 139pC |
| Crosstalk | -73dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 50mOhm |
| Switch Time (Ton, Toff) (Max) | 23ns, 32ns |
| Channel Capacitance (CS(off), CD(off)) | 50pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Number of Circuits | 4 |
