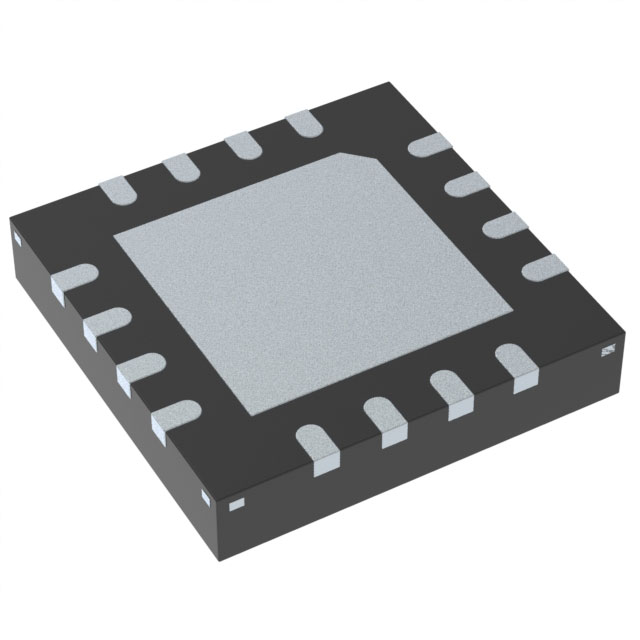

TMUX7413FRRPR
IC SW SPST-NO/NCX4 11OHM 16WQFNManufacturer: Texas Instruments
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
4 Circuit IC Switch 1:1 11Ohm 16-WQFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 11Ohm |
| -3db Bandwidth | 650MHz |
| Supplier Device Package | 16-WQFN (4x4) |
| Voltage - Supply, Single (V+) | 5V ~ 44V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | -330pC |
| Crosstalk | -100dB @ 1MHz |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 60mOhm |
| Switch Time (Ton, Toff) (Max) | 740ns, 100ns |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 700pA |
| Number of Circuits | 4 |
