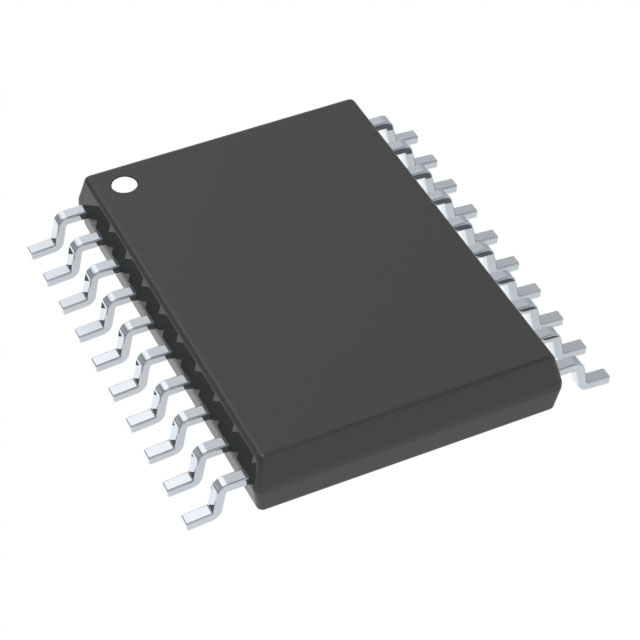

TMUX7234PWR
IC SW SPDT-NO/NC 5.8OHM 20TSSOPManufacturer: Texas Instruments
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
4 Circuit IC Switch 2:1 5.8Ohm 20-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 5.8Ohm |
| -3db Bandwidth | 92MHz |
| Supplier Device Package | 20-TSSOP |
| Voltage - Supply, Single (V+) | 4.5V ~ 44V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 22V |
| Charge Injection | 3pC |
| Crosstalk | -105dB @ 1MHz |
| Switch Circuit | SPDT - NO/NC |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 200mOhm |
| Switch Time (Ton, Toff) (Max) | 200ns, 180ns |
| Channel Capacitance (CS(off), CD(off)) | 16pF, 28pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 4 |
Request a Quote
