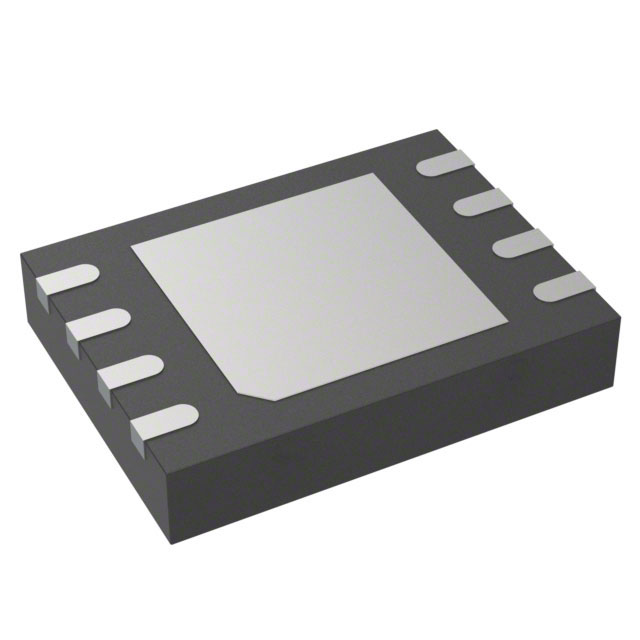

TMUX7219RQXR
IC SW SPDT-NO/NCX1 2.8OHM 8WSONManufacturer: Texas Instruments
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 2:1 2.8Ohm 8-WSON (3x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 2.8Ohm |
| -3db Bandwidth | 40MHz |
| Supplier Device Package | 8-WSON (3x2) |
| Voltage - Supply, Single (V+) | 4.5V ~ 44V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | -16pC |
| Crosstalk | -106dB @ 1MHz |
| Switch Circuit | SPDT - NO/NC |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm (Typ) |
| Switch Time (Ton, Toff) (Max) | 175ns, 180ns |
| Channel Capacitance (CS(off), CD(off)) | 34pF, 48pF |
| Current - Leakage (IS(off)) (Max) | 5nA (Max) |
| Number of Circuits | 1 |
Request a Quote
