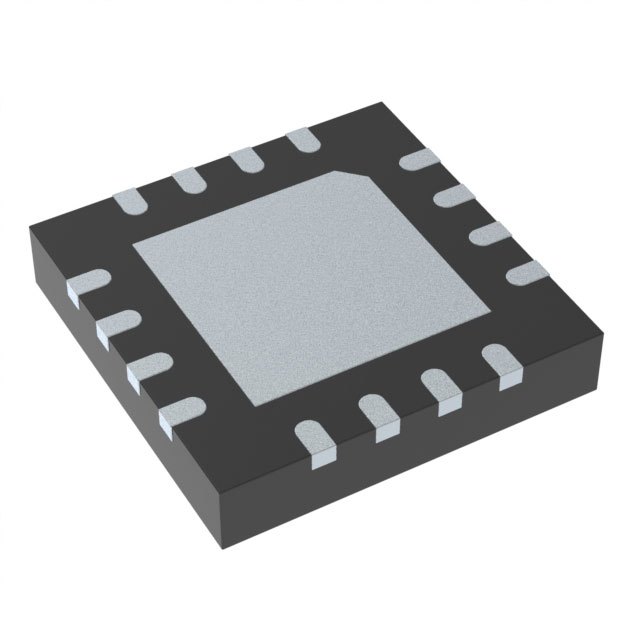

TMUX6236RUMR
IC SW SPDT-NO/NCX2 3.1OHM 16WQFNManufacturer: Texas Instruments
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
2 Circuit IC Switch 2:1 3.1Ohm 16-WQFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 3.1Ohm |
| -3db Bandwidth | 35MHz |
| Supplier Device Package | 16-WQFN (4x4) |
| Voltage - Supply, Single (V+) | 4.5V ~ 36V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 78pC |
| Switch Circuit | SPDT - NO/NC |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm (Typ) |
| Switch Time (Ton, Toff) (Max) | 130ns, 165ns |
| Channel Capacitance (CS(off), CD(off)) | 45pF, 60pF |
| Current - Leakage (IS(off)) (Max) | 50pA (Typ) |
| Number of Circuits | 2 |
