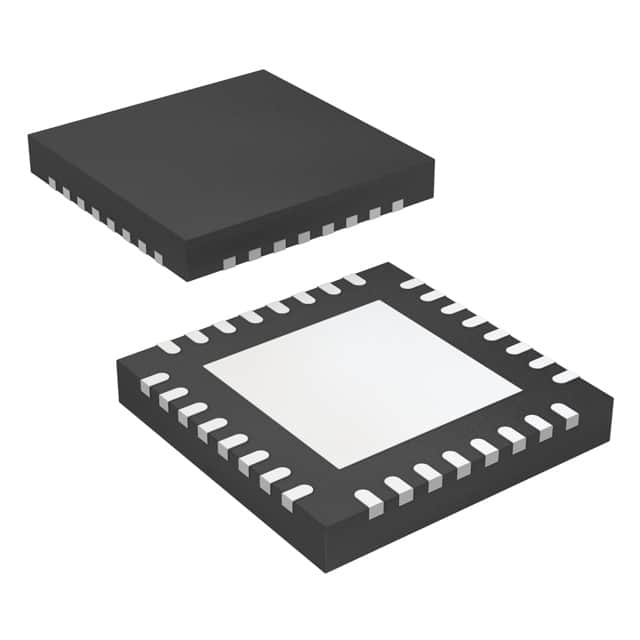

MUX36S16IRTVR
IC MUX 16:1 170OHM 32WQFNManufacturer: Texas Instruments
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 16:1 170Ohm 32-WQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| On-State Resistance (Max) | 170Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 32-WQFN (5x5) |
| Voltage - Supply, Single (V+) | 10V ~ 36V |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Charge Injection | 0.31pC |
| Crosstalk | -100dB @ 1MHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 6Ohm (Typ) |
| Switch Time (Ton, Toff) (Max) | 136ns, 78ns |
| Channel Capacitance (CS(off), CD(off)) | 2.1pF, 11.1pF |
| Current - Leakage (IS(off)) (Max) | 40pA |
| Number of Circuits | 1 |
