CD74HC4053MG4
IC SWITCH SPDT X 3 130OHM 16SOICManufacturer: Texas Instruments
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Texas Instruments CD74HC4053MG4 is a high-speed CMOS logic 3-circuit 2:1 multiplexer/demultiplexer. This SPDT switch features a low on-resistance of 130 Ohms maximum, with channel-to-channel matching of 5 Ohms. The device operates with single supply voltages from 2V to 6V or dual supply voltages from ±1V to ±5V. With a -3dB bandwidth of 200MHz and channel capacitance of 8pF, it is suitable for applications in industrial automation, consumer electronics, and telecommunications. The CD74HC4053MG4 is supplied in a 16-SOIC surface-mount package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 130Ohm |
| -3db Bandwidth | 200MHz |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 2V ~ 6V |
| Voltage - Supply, Dual (V±) | ±1V ~ 5V |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 5Ohm |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | 8pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 3 |
Request a Quote
Clients Also Buy
MUX506IPW

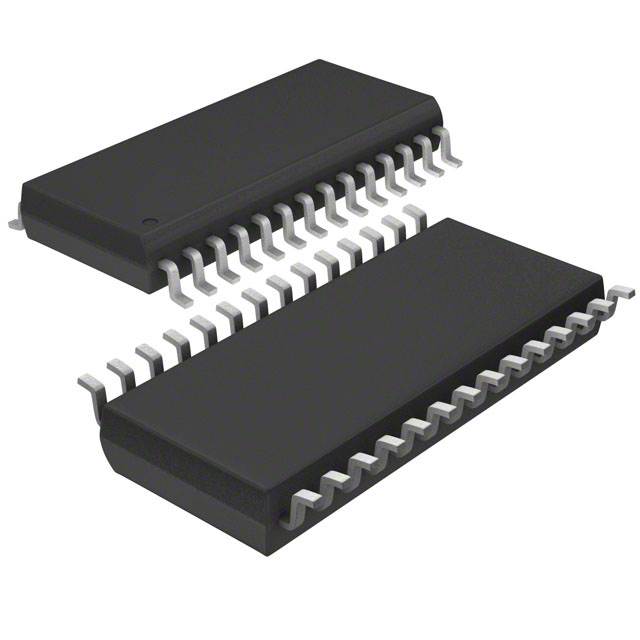

IC MUX 16:1 200OHM 28TSSOP
TMUX7213RUMR

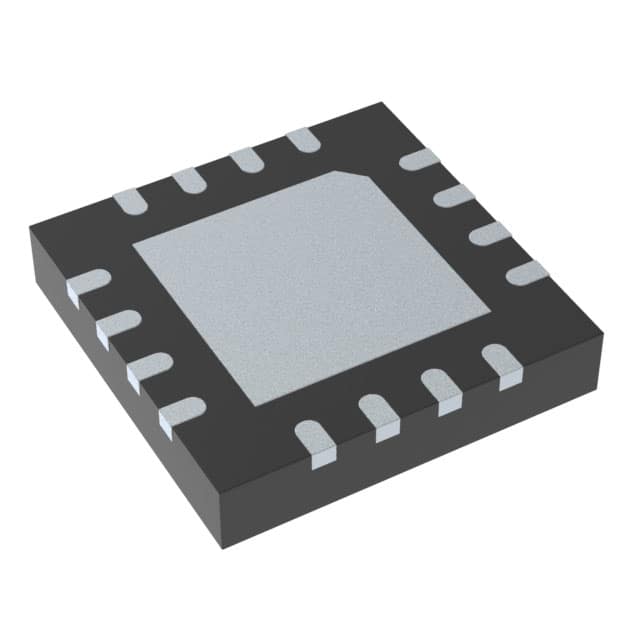

IC SW SPST-NO/NCX4 2.5OHM 16WQFN
