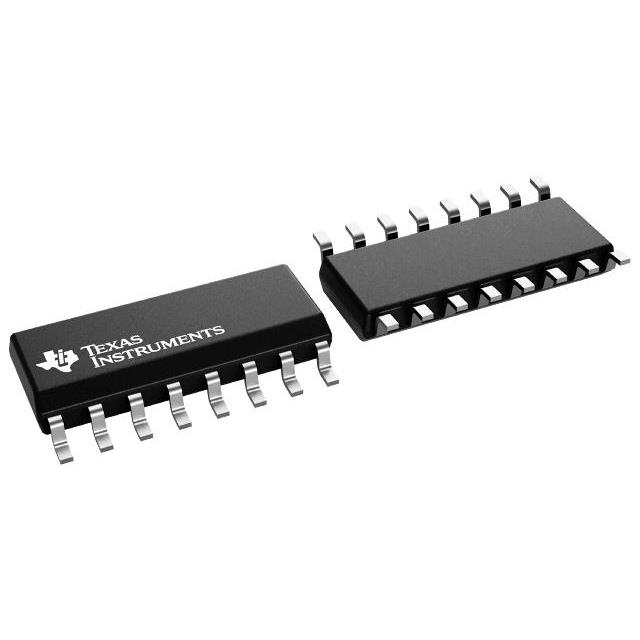

CD4052BNS
IC SW DP4T X 1 240OHM 16SOManufacturer: Texas Instruments
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Texas Instruments CD4052BNS is a high-performance analog multiplexer/demultiplexer featuring a dual-pole, 4-throw (DP4T) switch configuration. This single-circuit device offers a low on-state resistance of 240 Ohms maximum, with channel-to-channel matching of 5 Ohms. It supports a single supply voltage range from 3V to 20V and operates across an industrial temperature range of -55°C to 125°C. With a -3dB bandwidth of 25MHz and a channel capacitance of 0.2pF off/18pF on, this component is suitable for applications requiring precise signal routing and switching. The CD4052BNS is housed in a 16-SOIC surface-mount package and finds utility in telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-SOIC (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 240Ohm |
| -3db Bandwidth | 25MHz |
| Supplier Device Package | 16-SO |
| Voltage - Supply, Single (V+) | 3V ~ 20V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -40dB @ 10MHz |
| Switch Circuit | DP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 5Ohm |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | 0.2pF, 18pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 1 |
