74LVC1G3157DRYRG4
IC SWITCH SPDT X 1 15OHM 6SONManufacturer: Texas Instruments
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Texas Instruments 74LVC1G3157DRYRG4 is a single-pole, double-throw (SPDT) analog switch from the 74LVC series. This component features a 2:1 multiplexer/demultiplexer circuit with one active channel. It offers an on-state resistance of 15 Ohms maximum and a -3dB bandwidth of 300MHz. Key electrical characteristics include a channel capacitance of 5.2pF (off-state), charge injection of 7pC, and crosstalk of -54dB at 10MHz. Designed for surface mount applications, it is supplied in a 6-SON (1.45x1) package on tape and reel. Operating over a temperature range of -40°C to 85°C, this device supports single supply voltages from 1.65V to 5.5V. Applications for this component are found in consumer electronics, industrial automation, and automotive systems.
Additional Information
Series: 74LVCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

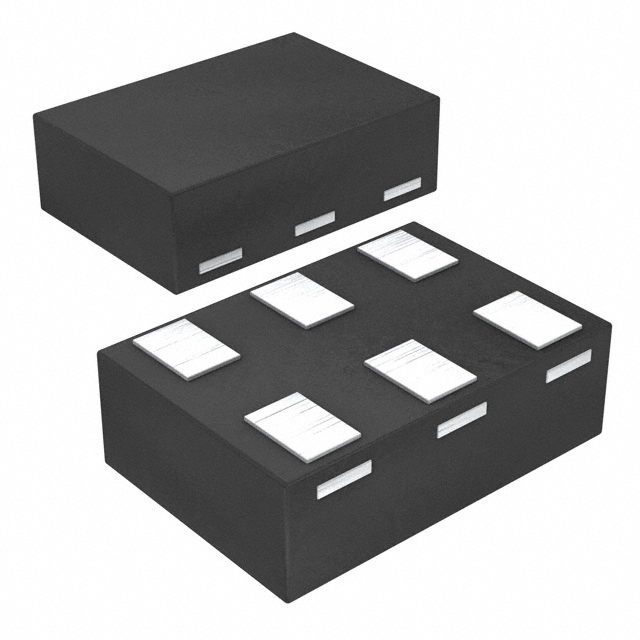

| Package / Case | 6-UFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 15Ohm |
| -3db Bandwidth | 300MHz |
| Supplier Device Package | 6-SON (1.45x1) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 7pC |
| Crosstalk | -54dB @ 10MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | 5.7ns, 3.8ns |
| Channel Capacitance (CS(off), CD(off)) | 5.2pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Number of Circuits | 1 |
