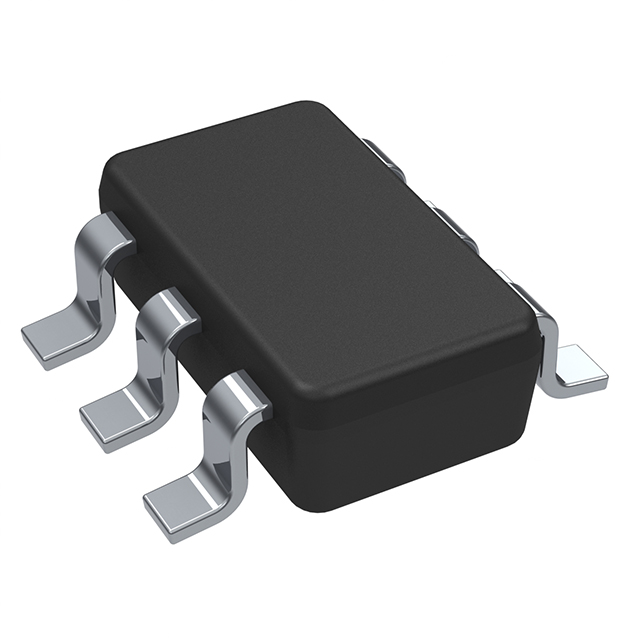

1P1G3157QDBVRQ1HY
IC SW SPDT 15OHM SOT23-6Manufacturer: Texas Instruments
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Texas Instruments 1P1G3157QDBVRQ1HY is a single-circuit, SPDT (Single Pole Double Throw) analog switch designed for 2:1 multiplexing applications. This AEC-Q100 qualified component features a low on-state resistance of 15 Ohms maximum, with channel-to-channel matching (?Ron) of 100 mOhms. It operates over a wide single supply voltage range of 1.65V to 5.5V and is specified for automotive applications with an operating temperature range of -40°C to 125°C. The device exhibits a channel capacitance of 2.7pF (CS(off), CD(off)) and a charge injection of 7pC, with crosstalk rated at -54dB at 10MHz. Leakage current (IS(off)) is a maximum of 1µA. Packaged in a SOT-23-6 surface-mount configuration, this switch is suitable for automotive infotainment systems and other demanding signal routing applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 15Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | SOT-23-6 |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 7pC |
| Crosstalk | -54dB @ 10MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | 2.7pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Grade | Automotive |
| Number of Circuits | 1 |
| Qualification | AEC-Q100 |
