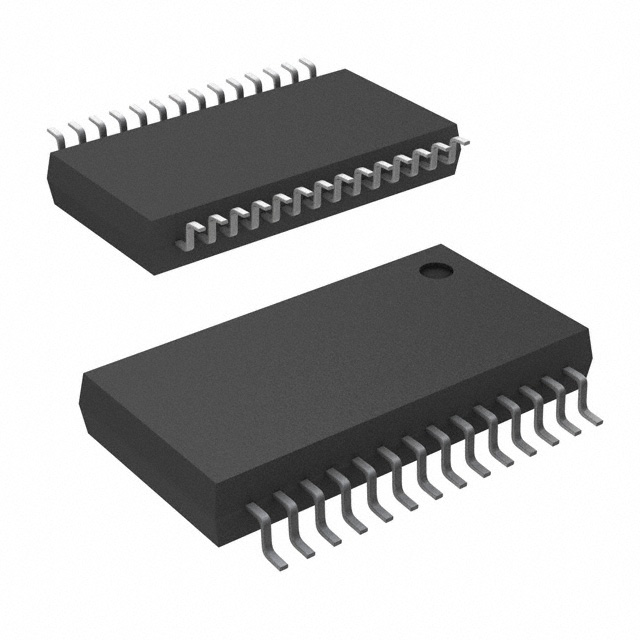

AFE1230E
IC AFE 1 CHAN 16BIT 28SSOPManufacturer: Texas Instruments
Categories: Analog Front End (AFE)
Quality Control: Learn More
Texas Instruments AFE1230E is a single-channel, 16-bit Analog Front End (AFE) designed for precision signal acquisition. This device operates with an analog supply voltage of 5V and a digital supply range of 3.15V to 5.25V, offering flexibility in system design. Featuring a 750 mW power dissipation, the AFE1230E is housed in a compact 28-SSOP surface-mount package. Its robust design makes it suitable for demanding applications in sectors such as industrial automation, medical instrumentation, and test and measurement equipment, where accurate analog signal conditioning is critical. The AFE1230E facilitates efficient signal path management for a wide array of analog-to-digital conversion systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3.15V ~ 5.25V |
| Supplier Device Package | 28-SSOP |
| Number of Channels | 1 |
| Power (Watts) | 750 mW |
