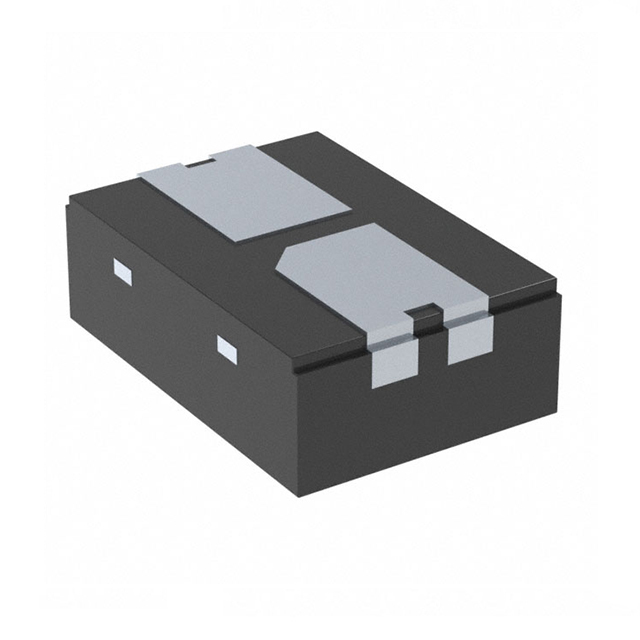

LMT01EDQXTQ1
PROTOTYPEManufacturer: Texas Instruments
Categories: Analog and Digital Output
Quality Control: Learn More
Texas Instruments LMT01EDQXTQ1 is a digital temperature sensor designed for automotive applications, qualified to AEC-Q100 standards. This device offers a high-resolution output of 0.0625°C, enabling precise temperature monitoring. Its sensing range is specified from -20°C to 90°C, with an accuracy of ±0.5°C at 25°C. The LMT01EDQXTQ1 features a PWM output and operates over a supply voltage range of 2V to 5.5V. It is supplied in a compact 2-WSON (1.7x2.5) surface-mount package with wettable flanks, suitable for automated assembly. The extended operating temperature range of -40°C to 150°C makes it robust for demanding automotive environments, including powertrain and body electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 2-WDFN |
| Output Type | PWM |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Supply | 2V ~ 5.5V |
| Sensor Type | Digital |
| Resolution | 0.0625°C |
| Supplier Device Package | 2-WSON (1.7x2.5) |
| Test Condition | 25°C |
| Accuracy - Highest (Lowest) | ±0.5°C (±0.625°C) |
| Sensing Temperature - Local | -20°C ~ 90°C |
| Sensing Temperature - Remote | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
