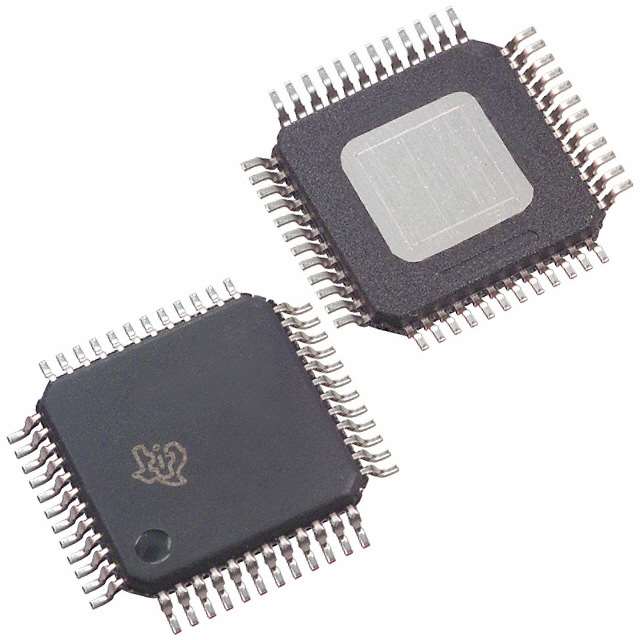

THS8135PHPG4
IC VIDEO DAC 10BIT 240M 48HTQFPManufacturer: Texas Instruments
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Texas Instruments THS8135PHPG4 is a 10-bit, 240MSPS video Digital-to-Analog Converter (DAC). This device features a parallel data interface and is housed in a 48-HTQFP (7x7) package, suitable for surface mount applications. With three internal DAC channels, the THS8135PHPG4 is designed for high-speed video signal processing. It operates with analog and digital voltage supplies ranging from 1.65V to 2V and 3V to 3.6V. Typical applications for this component include high-definition television (HDTV) broadcast equipment, professional video processing, and digital signage. The operating temperature range for this device is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 48-PowerTQFP |
| Mounting Type | Surface Mount |
| Type | Video DAC |
| Data Interface | Parallel |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 1.65V ~ 2V, 3V ~ 3.6V |
| Sampling Rate (Per Second) | 240M |
| Resolution (Bits) | 10 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 48-HTQFP (7x7) |
| Number of Channels | 3 |
