PCM56P
IC DAC/AUDIO 16BIT 16DIPManufacturer: Texas Instruments
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Texas Instruments PCM56P is a 16-bit monolithic digital-to-analog converter (DAC) designed for audio applications. This component features a PCM data interface and a single channel output. The PCM56P operates with a dual voltage supply ranging from ±4.75V to ±13.2V. Packaged in a 16-DIP (0.300", 7.62mm) through-hole mount, it is suitable for various industrial and consumer audio systems. Its operating temperature range is from -25°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Type | DAC, Audio |
| Data Interface | PCM |
| Operating Temperature | -25°C ~ 70°C |
| Voltage - Supply | ±4.75V ~ 13.2V |
| Sampling Rate (Per Second) | - |
| Resolution (Bits) | 16 b |
| Voltage Supply Source | Dual ± |
| Supplier Device Package | 16-PDIP |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy
PCM1803DBG4
IC ADC/AUDIO 24BIT 96K 20SSOP

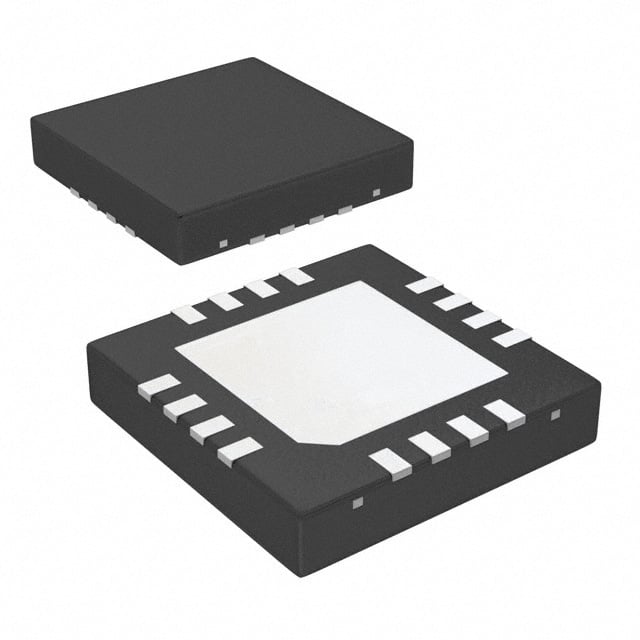

LDC1314RGHT
