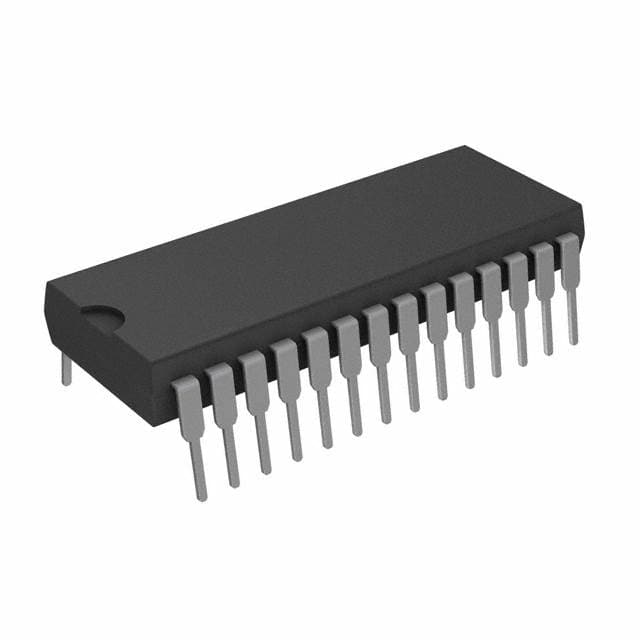

PCM54HP
IC DAC/AUDIO 16BIT 28DIPManufacturer: Texas Instruments
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Texas Instruments PCM54HP is a 16-bit stereo audio Digital-to-Analog Converter (DAC) designed for high-fidelity audio signal processing. This component features a parallel data interface and is housed in a 28-pin Dual In-line Package (DIP) suitable for through-hole mounting. The PCM54HP operates with dual power supplies, accepting voltages from ±4.75V to ±15.75V, and boasts a resolution of 16 bits. Its architecture is optimized for audio applications, providing accurate conversion for a single channel. The operating temperature range for this device is 0°C to 70°C, making it suitable for deployment in various consumer electronics and professional audio equipment.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Type | DAC, Audio |
| Data Interface | Parallel |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | ±4.75V ~ 15.75V |
| Sampling Rate (Per Second) | - |
| Resolution (Bits) | 16 b |
| Voltage Supply Source | Dual ± |
| Supplier Device Package | 28-PDIP |
| Number of Channels | 1 |
Request a Quote
