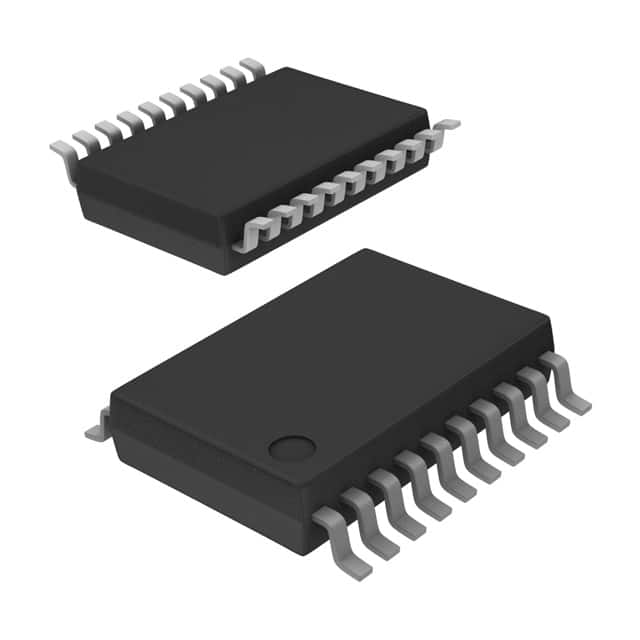

PCM1803DB
IC ADC/AUDIO 24BIT 96K 20SSOPManufacturer: Texas Instruments
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Texas Instruments PCM1803DB is a 24-bit, 96kHz audio analog-to-digital converter (ADC) with a serial interface. This component features two input channels and supports dual supply voltages of 2.7V to 3.6V and 4.5V to 5.5V, with separate analog and digital voltage supplies. The PCM1803DB is housed in a 20-SSOP package, suitable for surface mounting applications. Its high resolution and sampling rate make it ideal for audio processing in consumer electronics, automotive infotainment systems, and professional audio equipment. The device operates within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 20-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Type | ADC, Audio |
| Data Interface | Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 3.6V, 4.5V ~ 5.5V |
| Sampling Rate (Per Second) | 96k |
| Resolution (Bits) | 24 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 20-SSOP |
| Number of Channels | 2 |
