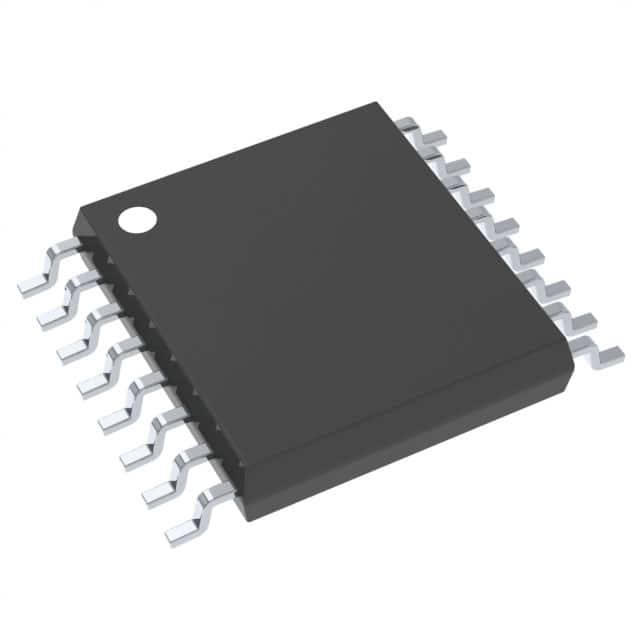

UCC2894PW
IC OFFLINE SW MULT TOP 16TSSOPManufacturer: Texas Instruments
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback, Forward Topology 1MHz 16-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Duty Cycle | 70% |
| Frequency - Switching | 1MHz |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | Flyback, Forward |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 16V |
| Supplier Device Package | 16-TSSOP |
| Fault Protection | Current Limiting |
| Voltage - Start Up | 12.7 V |
| Control Features | Soft Start, Sync |
