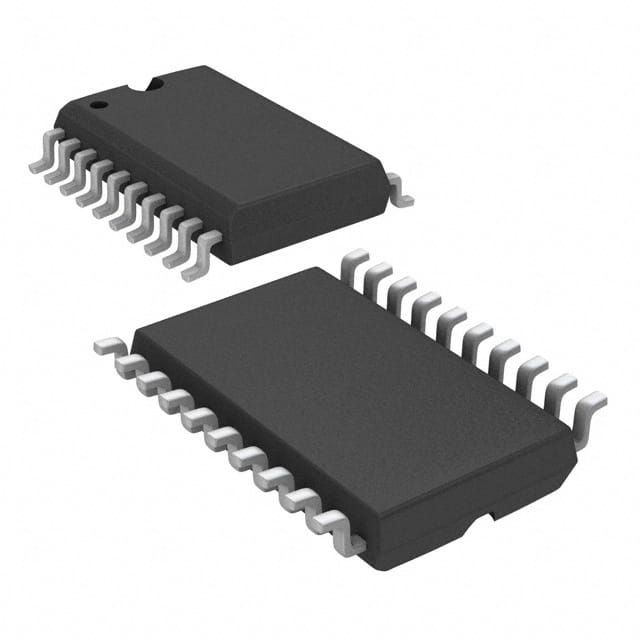

UC2879DWTR
IC OFFLINE SW FULL-BRDG 20SOICManufacturer: Texas Instruments
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Texas Instruments UC2879DWTR is a high-performance offline switching controller designed for full-bridge topologies. Operating at a switching frequency of up to 300kHz, this component offers precise control through integrated frequency and soft-start features, along with synchronization capabilities. It includes current limiting for fault protection. The UC2879DWTR is housed in a 20-SOIC package for surface mounting and operates within a supply voltage range of 9.25V to 20V. This device finds application in power supply units for computing, industrial, and telecommunications equipment requiring efficient offline conversion. The component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | 50% |
| Frequency - Switching | 300kHz |
| Internal Switch(s) | - |
| Voltage - Breakdown | - |
| Output Isolation | Non-Isolated |
| Topology | Full-Bridge |
| Voltage - Supply (Vcc/Vdd) | 9.25V ~ 20V |
| Supplier Device Package | 20-SOIC |
| Fault Protection | Current Limiting |
| Control Features | Frequency Control, Soft Start, Sync |
