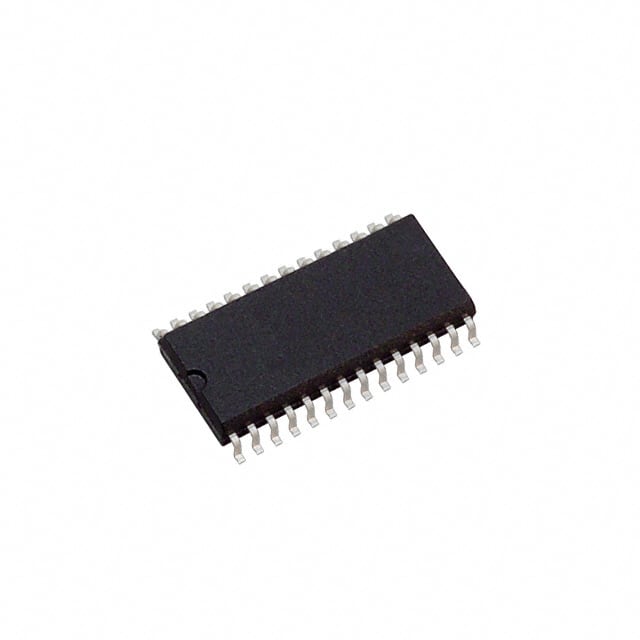

UC2875DWPTR
IC OFFLINE SW FULL-BRDG 28SOICManufacturer: Texas Instruments
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Full-Bridge Topology 1MHz 28-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Duty Cycle | 100% |
| Frequency - Switching | 1MHz |
| Internal Switch(s) | - |
| Voltage - Breakdown | - |
| Output Isolation | Non-Isolated |
| Topology | Full-Bridge |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V |
| Supplier Device Package | 28-SOIC |
| Fault Protection | Current Limiting |
| Voltage - Start Up | 10.75 V |
| Control Features | Frequency Control, Soft Start, Sync |
