XX930A3A1M12
ULTRASONIC SENSORS XX, ULTRASONIManufacturer: Telemecanique Sensors
Categories: Proximity Sensors
Quality Control: Learn More

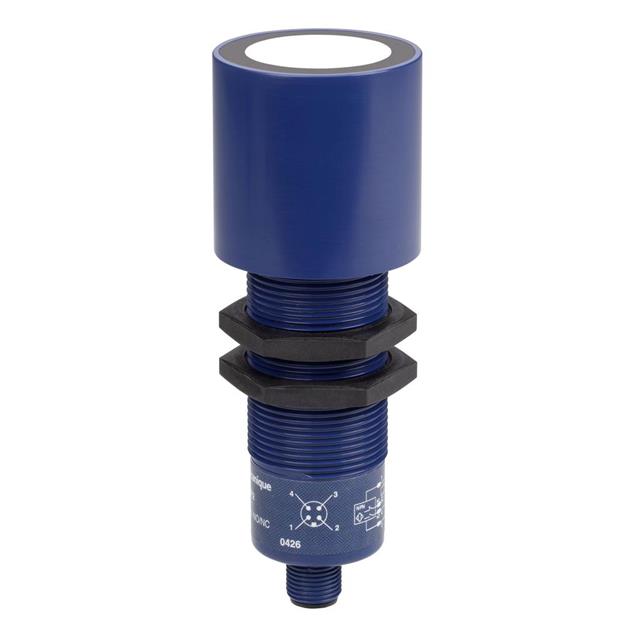

Telemecanique Sensors XX930A3A1M12 is an ultrasonic proximity sensor designed for industrial automation applications. This component features a sensing distance of 314.961 inches (8000mm) and an IP67 ingress protection rating, ensuring robust operation in challenging environments. The M30 threaded, cylindrical housing is constructed from plastic for durability. It offers an analog current output and operates within a voltage range of 15V to 24V. The sensor is unshielded and utilizes a connector for termination. Typical applications include material handling, packaging, and assembly lines within the automotive and general manufacturing sectors. The sensor is equipped with an LED indicator for status monitoring and operates effectively between -20°C and 60°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Cylinder, Threaded - M30 |
| Output Type | Analog Current |
| Sensing Distance | 314.961"" (8000mm) |
| Shielding | Unshielded |
| Operating Temperature | -20°C ~ 60°C |
| Termination Style | Connector |
| Voltage - Supply | 15V ~ 24V |
| Material - Body | Plastic |
| Sensor Type | Ultrasonic |
| Ingress Protection | IP67 |
| Indicator | LED |
| Response Frequency | - |
