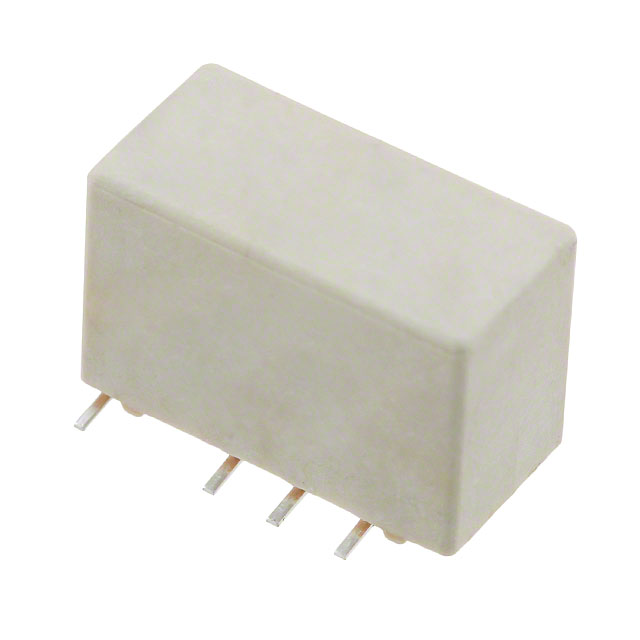

V23079E1201B301
RELAY GENERAL PURPOSE DPDT 2A 5VManufacturer: TE Connectivity Potter & Brumfield Relays
Categories: Signal Relays, Up to 2 Amps
Quality Control: Learn More
The TE Connectivity Potter & Brumfield Relays V23079E1201B301 is a DPDT (2 Form C) general-purpose relay from the V23079, AXICOM series, designed for surface mount applications. This dual-coil latching relay operates with a 5VDC coil voltage and a coil current of 28mA. It features contacts rated for 2A switching current with a maximum switching voltage of 250VAC or 220VDC, supporting loads up to 500VA or 440W. The contact material is Silver Nickel (AgNi) with Gold (Au) plating. With an operate time and release time of 4ms, it requires a must-operate voltage of 3.75 VDC. This component is suitable for use in telecommunications, industrial automation, and medical equipment. The V23079E1201B301 is supplied on tape and reel and carries cURus approval. Operating temperature range is -40°C to 85°C. Termination is via gull wing style.
Additional Information
Series: V23079, AXICOMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Coil Voltage | 5VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Gull Wing |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Coil Current | 28 mA |
| Coil Type | Latching, Dual Coil |
| Seal Rating | - |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Must Release Voltage | - |
| Must Operate Voltage | 3.75 VDC |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 500VA, 440W |
