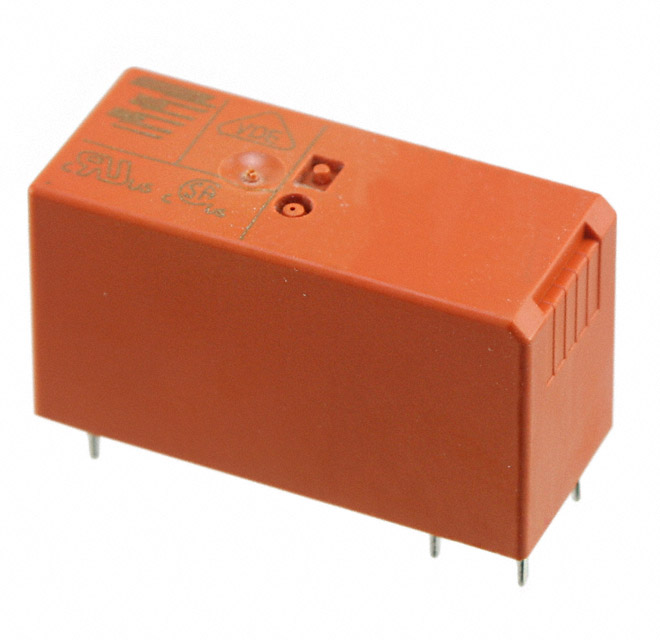

RTD14024F
RELAY GEN PURPOSE SPDT 16A 24VManufacturer: TE Connectivity Potter & Brumfield Relays
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Additional Information
Series: RT1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, CSA, cURus, VDE |
| Relay Type | General Purpose |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Nickel (AgNi) |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 16.8 VDC |
| Operate Time | 8 ms |
| Release Time | 6 ms |
| Grade | - |
| Coil Insulation | Class F |
| Qualification | - |
| Load - Max Switching | 6400VA |
Request a Quote
Clients Also Buy

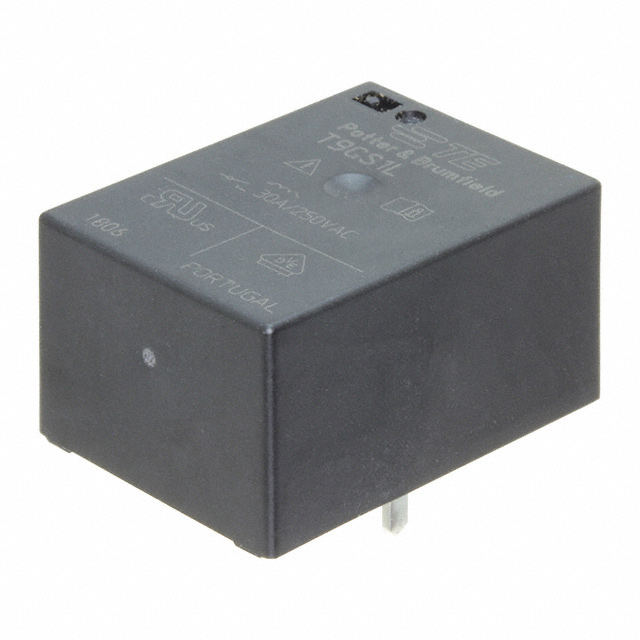

T9GS1L14-12
