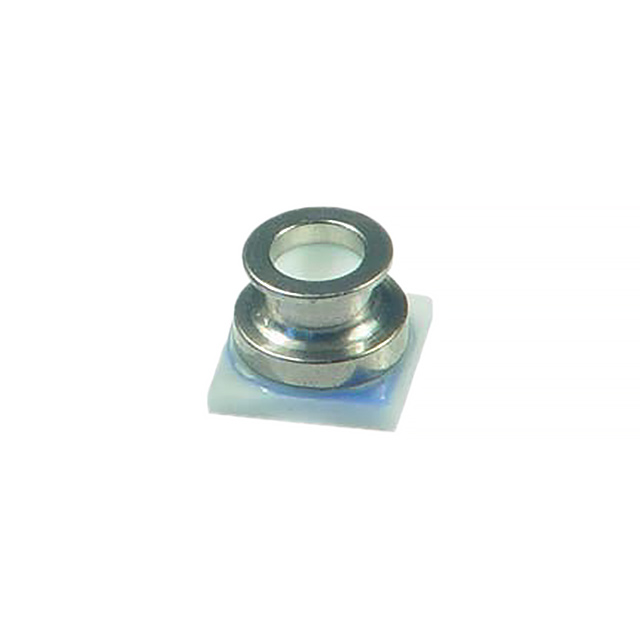

MS583730BA01-50
SENSOR 435.1PSIA 24BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 435.1PSI (3000kPa) Absolute 24 b 4-SMD Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD Module |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Output | 24 b |
| Operating Pressure | 435.1PSI (3000kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.022PSI (±0.15kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.5V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 725.19PSI (5000kPa) |
