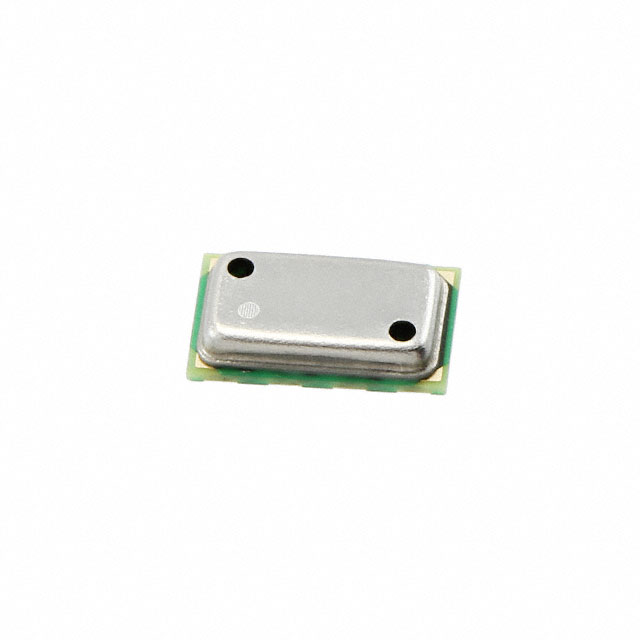

MS561101BA03-00
SENSOR 17.4PSIA 24BIT 8SMDManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties MS561101BA03-00 is a high-resolution absolute pressure sensor designed for board mounting. This 8-SMD component operates within an absolute pressure range of 0.15 PSI to 17.4 PSI (1 kPa to 120 kPa), with a typical accuracy of ±0.022 PSI (±0.15 kPa). The sensor provides a 24-bit digital output via I2C and SPI interfaces. It features a wide operating temperature range of -40°C to 85°C and requires a supply voltage between 1.8V and 3.6V. The MS561101BA03-00 is suitable for applications requiring precise atmospheric or absolute pressure measurements, commonly found in consumer electronics, industrial automation, and altimetry systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 8-SMD |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Output | 24 b |
| Operating Pressure | 0.15PSI ~ 17.4PSI (1kPa ~ 120kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.022PSI (±0.15kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.8V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 8-SMD |
| Port Style | No Port |
| Maximum Pressure | 87.02PSI (600kPa) |
