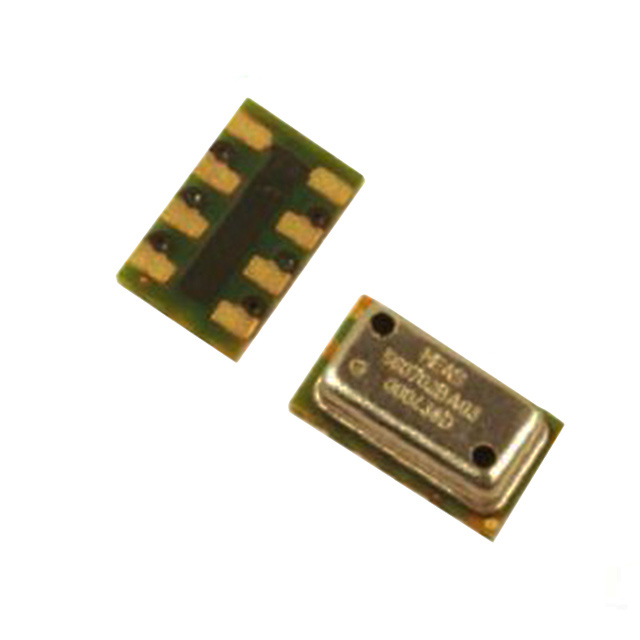

MS560702BA03-00
SENSOR 17.4PSIA 24BIT 8SMDManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties MS560702BA03-00 is an absolute pressure sensor with an operating range of 0.15 PSI to 17.4 PSI (1 kPa to 120 kPa). This 8-SMD component offers a 24-bit digital output via I2C and SPI interfaces. It provides high accuracy of ±0.022 PSI (±0.15 kPa) and operates within a temperature range of -40°C to 85°C. The device is designed for surface mount applications and is supplied in tray packaging. Its capabilities make it suitable for use in industrial automation, medical devices, and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 8-SMD |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Output | 24 b |
| Operating Pressure | 0.15PSI ~ 17.4PSI (1kPa ~ 120kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.022PSI (±0.15kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.8V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 8-SMD |
| Port Style | No Port |
| Maximum Pressure | 87.02PSI (600kPa) |
