M3431-000006-01KPG
SENSOR 1000PSIG 1/8""NPT 4.5VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

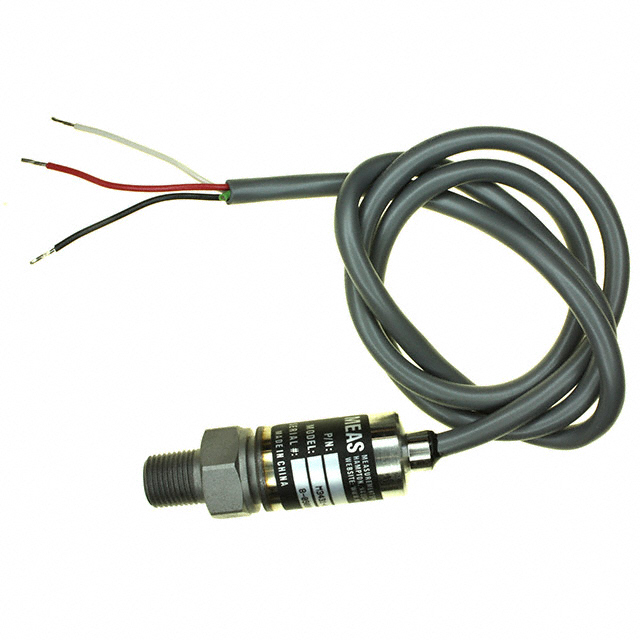

Pressure Sensor 1000PSI (6894.76kPa) Vented Gauge Male - 1/8"" (3.18mm) NPT 0.5 V ~ 4.5 V Cylinder
Additional Information
Series: MSP340RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 1000PSI (6894.76kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1% |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 1/8"" (3.18mm) NPT |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 2000PSI (13789.51kPa) |
