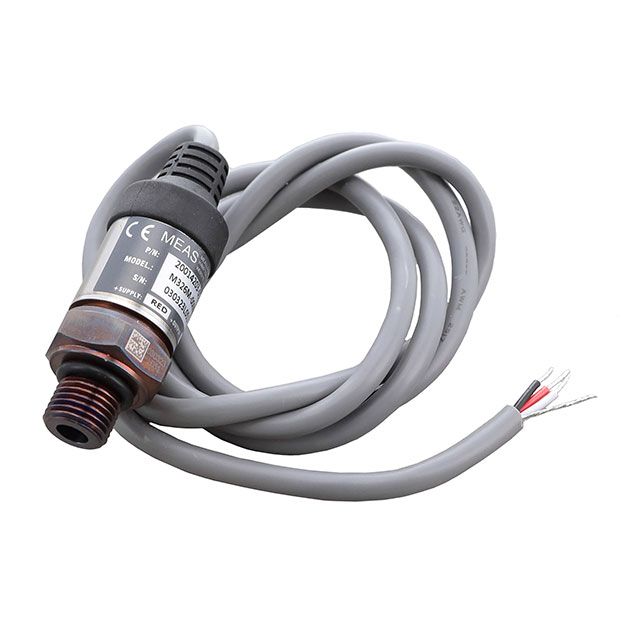

M326M-00000B-007BG
SENSOR 101.53PSIG 1/4"" 5VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 101.53PSI (700kPa) Gauge Male - 1/4"" (6.35mm) G 0 V ~ 5 V
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | - |
| Output Type | Analog Voltage |
| Output | 0 V ~ 5 V |
| Operating Pressure | 101.53PSI (700kPa) |
| Pressure Type | Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | - |
| Voltage - Supply | 8V ~ 30V |
| Port Size | Male - 1/4"" (6.35mm) G |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 203.05PSI (1400kPa) |
