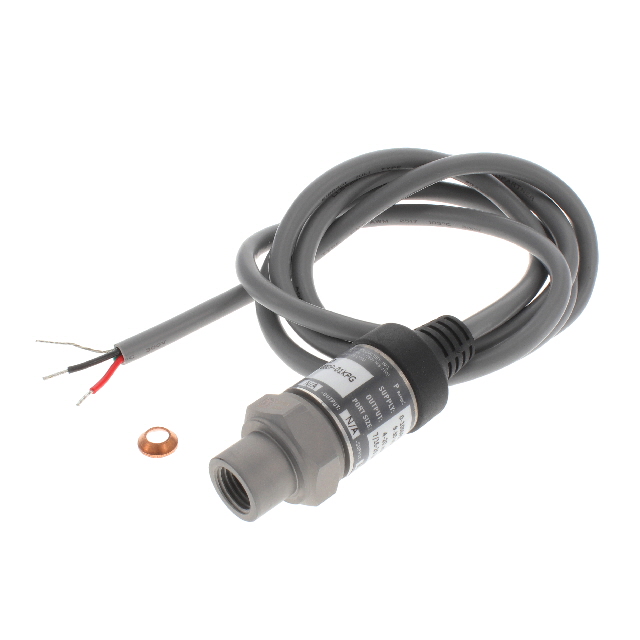

M325M-00000P-01KPG
SENSOR 1000PSIG 7/16"" .02AManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 1000PSI (6894.76kPa) Vented Gauge Female - 7/16"" (11.11mm) UNF 4 mA ~ 20 mA Cylinder, Threaded
Additional Information
Series: M3200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | Cylinder, Threaded |
| Output Type | Analog Current |
| Output | 4 mA ~ 20 mA |
| Operating Pressure | 1000PSI (6894.76kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Cable/Wire Leads |
| Voltage - Supply | 9V ~ 30V |
| Port Size | Female - 7/16"" (11.11mm) UNF |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 2000PSI (13789.51kPa) |
