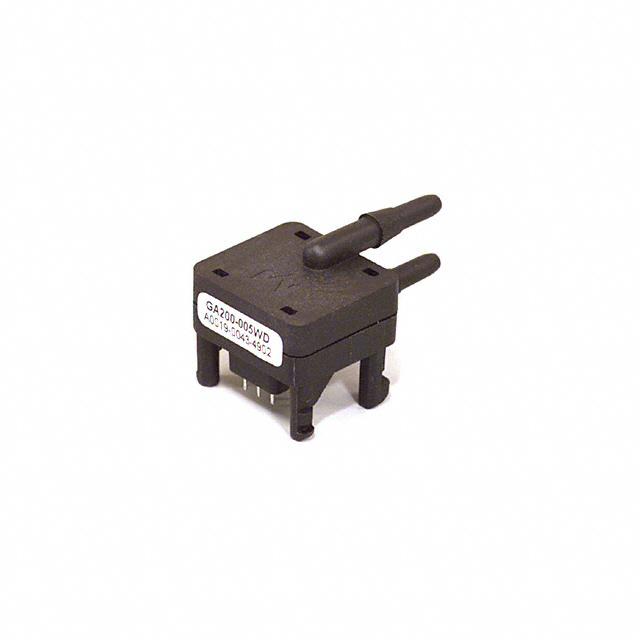

GA200-005WD
SENSOR 0.18PSID 0.13"" 4VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties Ares Series GA200-005WD is a differential pressure sensor designed for precise measurement in demanding applications. This 3-SIP module offers an analog voltage output ranging from 0.25V to 4V, with a highly accurate ±0.25% accuracy rating. Optimized for board mounting, the GA200-005WD features amplified and temperature-compensated output signals, operating within a 4.75V to 5.25V supply voltage range. It measures differential pressure up to 0.18 PSI (1.25 kPa) with a maximum pressure rating of 10 PSI (68.95 kPa). The sensor utilizes dual 0.13" (3.23mm) barbed tube ports for connection and is suitable for operation across a -25°C to 80°C temperature range. Typical industries benefiting from this component include industrial automation and medical equipment.
Additional Information
Series: AresRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | |
| Package / Case | 3-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.25 V ~ 4 V |
| Operating Pressure | 0.18PSI (1.25kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -25°C ~ 80°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.13"" (3.23mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 10PSI (68.95kPa) |
| Packaging |
Request a Quote
Clients Also Buy

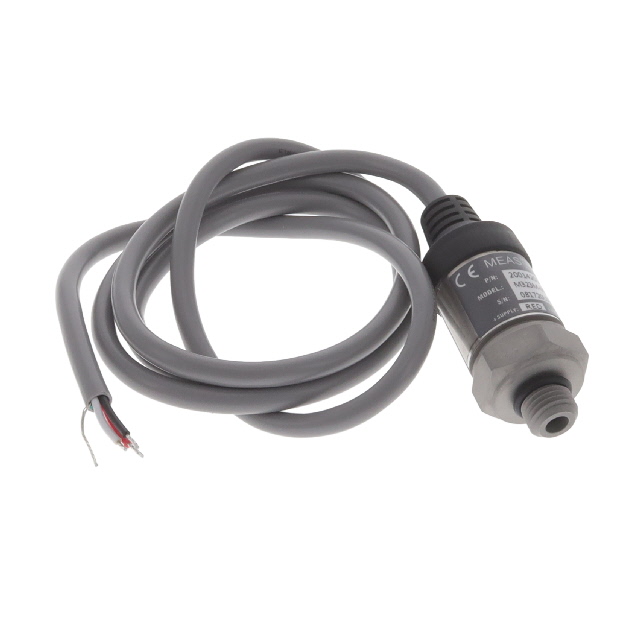

M323M-000004-017BG
