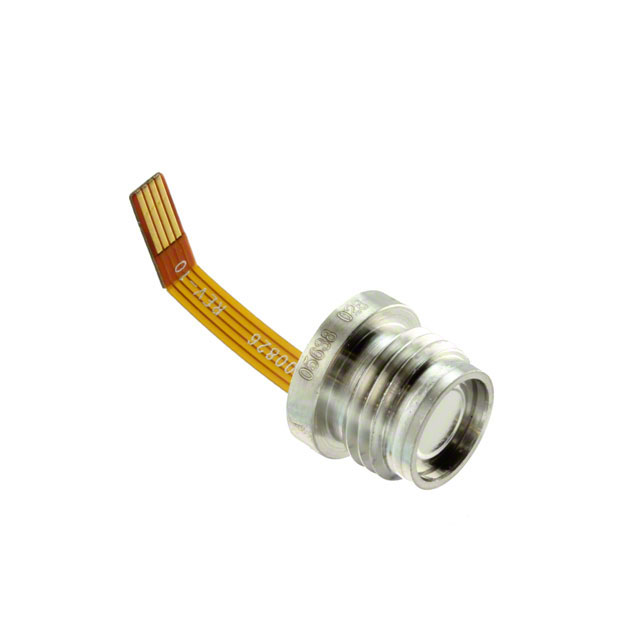

89BSD-028BA-A
SENSOR 406.11PSIA 5/16"" 24BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 406.11PSI (2800kPa) Absolute Male - 5/16"" (7.94mm) UNEF 24 b Cylinder
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | Cylinder |
| Output Type | I2C |
| Output | 24 b |
| Operating Pressure | 406.11PSI (2800kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.3% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Cable with Connector |
| Voltage - Supply | 1.8V ~ 3.6V |
| Port Size | Male - 5/16"" (7.94mm) UNEF |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 812.21PSI (5600kPa) |
