89-05KS-4R
SENSOR 5000PSIS 1/4""NPT .125VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

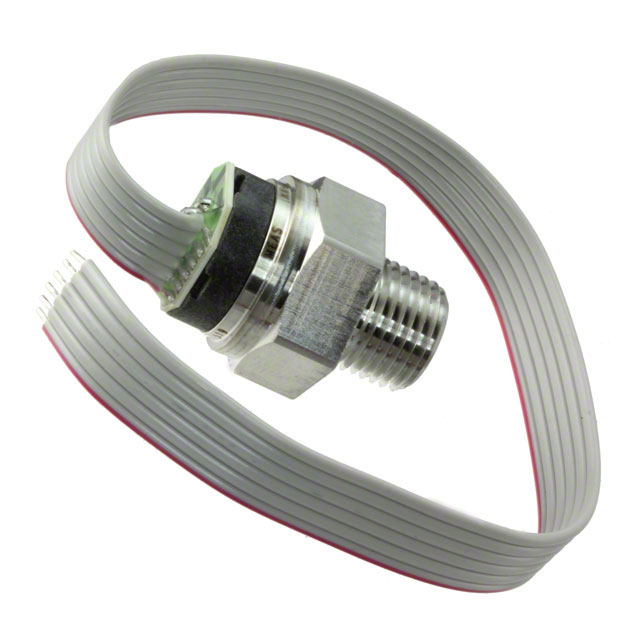

Pressure Sensor 5000PSI (34473.79kPa) Sealed Gauge Male - 1/4"" (6.35mm) NPT 0 mV ~ 125 mV Cylinder
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | Cylinder |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 125 mV |
| Operating Pressure | 5000PSI (34473.79kPa) |
| Pressure Type | Sealed Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 1/4"" (6.35mm) NPT |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 15000PSI (103421.36kPa) |
