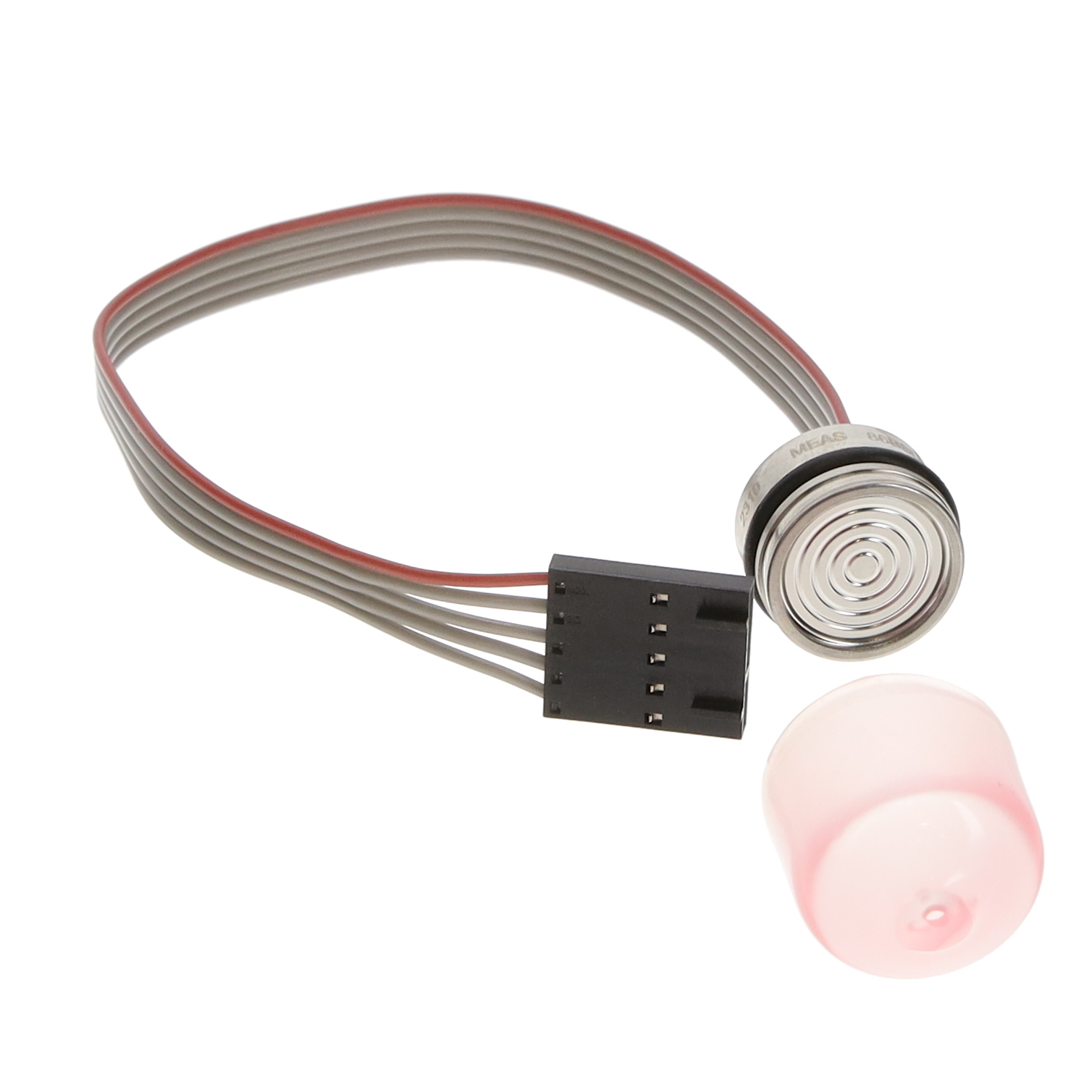

86BSD150PG-3AIC
SENSOR 150PSIG 14BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 86BSD150PG-3AIC is a high-accuracy pressure sensor designed for demanding applications. This gauge pressure sensor operates within a range of 0 to 150 PSI (1034.21 kPa), with a maximum overpressure capability of 300 PSI (2068.43 kPa). It features a robust 14-bit output resolution, providing precise pressure readings. The sensor is temperature compensated with an accuracy of ±1% over its operating temperature range of -40°C to 125°C. Utilizing an I2C output interface, it offers efficient digital communication. This component is suitable for use in industrial automation, automotive systems, and medical equipment. Supplied in tube packaging, the 86BSD150PG-3AIC operates from a supply voltage of 2.7V to 5.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | - |
| Output Type | I2C |
| Output | 14 b |
| Operating Pressure | 150PSI (1034.21kPa) |
| Pressure Type | Gauge |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | - |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | - |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 300PSI (2068.43kPa) |
