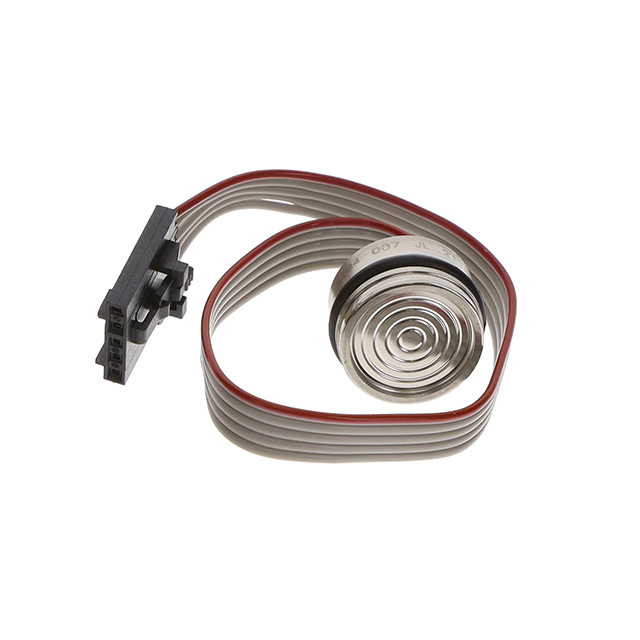

86BSD030PG-3AIC
SENSOR 30PSIG 14BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 86BSD030PG-3AIC is a high-accuracy gauge pressure sensor designed for demanding applications. This component features a 30 PSI (206.84 kPa) operating pressure range with a maximum pressure capability of 60 PSI (413.69 kPa). It provides a 14-bit I2C output, offering precise digital data for pressure readings. The sensor is temperature compensated and exhibits an accuracy of ±1%, ensuring reliable performance across its operating temperature range of -40°C to 125°C. With a wide supply voltage range of 2.7V to 5.5V and a tube package, this TE Connectivity Measurement Specialties sensor is suitable for industrial and automotive systems requiring robust pressure monitoring.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | - |
| Output Type | I2C |
| Output | 14 b |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Gauge |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | - |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | - |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 60PSI (413.69kPa) |
