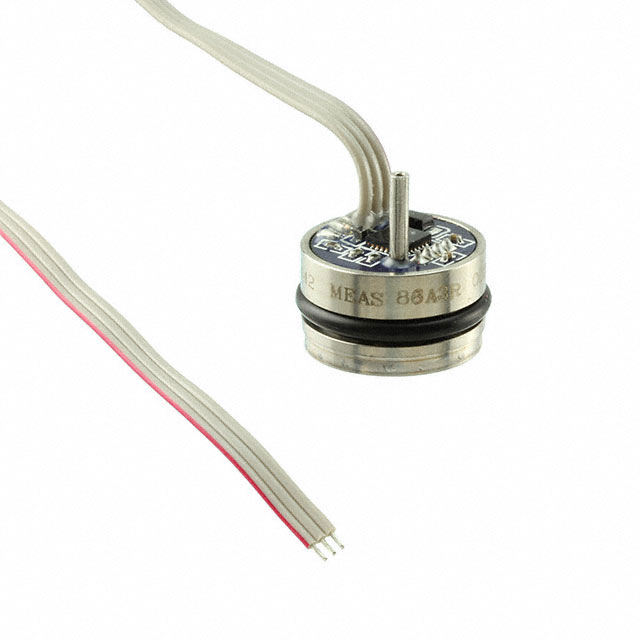

86A3R-000000-100PG
SENSOR 100PSIG 4.5VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 86A3R-000000-100PG is a vented gauge pressure sensor module designed for precise pressure monitoring. This component operates with an analog voltage output ranging from 0.5V to 4.5V, driven by a supply voltage of 4.75V to 5.25V. It features a ±1% accuracy rating and provides an amplified, temperature-compensated output. The sensor is specified for an operating pressure of 100PSI (689.48kPa), with a maximum pressure capability of 300PSI (2068.43kPa). Its operating temperature range is -20°C to 85°C. The 86A3R-000000-100PG is suitable for board mount applications and is supplied in tube packaging with cable and connector termination. This sensor is commonly utilized in industrial automation and medical equipment sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tube |
| Package / Case | Module |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Cable with Connector |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 300PSI (2068.43kPa) |
