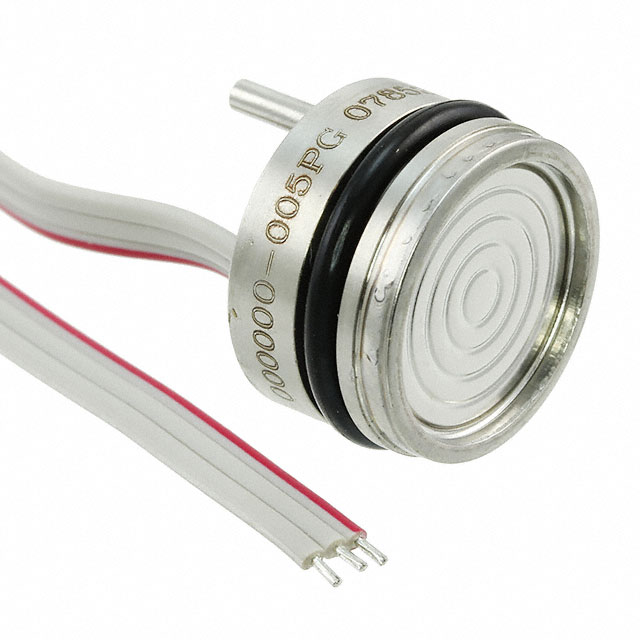

86A3R-000000-005PG
SENSOR 5PSIG 4.5VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 5PSI (34.47kPa) Vented Gauge 0.5 V ~ 4.5 V Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tube |
| Package / Case | Module |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Cable with Connector |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 15PSI (103.42kPa) |
