86-005G-CT
SENSOR 5PSIG 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

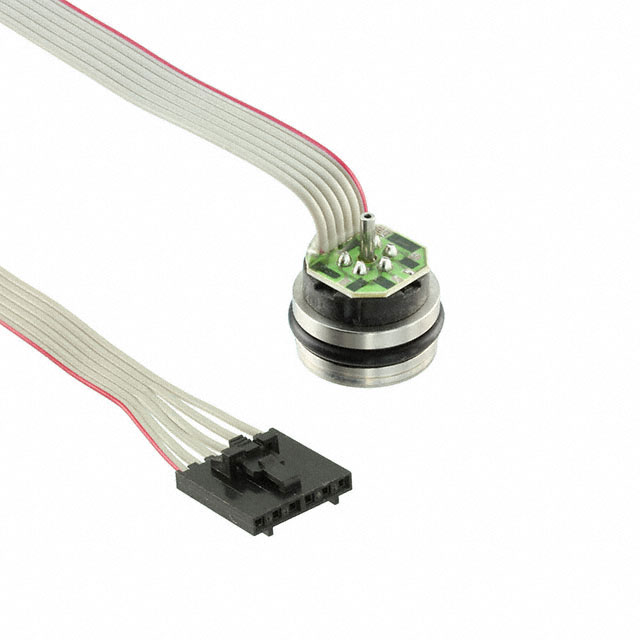

The TE Connectivity Measurement Specialties 86-005G-CT is a vented gauge pressure sensor designed for demanding applications. This component operates within a pressure range of 0 to 5 psi (34.47 kPa), with a maximum allowable pressure of 15 psi (103.42 kPa). It features a Wheatstone bridge output providing a mV signal from 0 mV to 100 mV, calibrated for accuracy of ±0.2%. The sensor is temperature compensated and suitable for board mount applications, operating across an ambient temperature range of -20°C to 70°C. Supplied in bulk packaging, this cylinder-packaged sensor utilizes cable with connector termination. Its robust construction and precise output make it ideal for use in industrial automation and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.2% |
| Operating Temperature | -20°C ~ 70°C |
| Termination Style | Cable with Connector |
| Voltage - Supply | - |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 15PSI (103.42kPa) |
