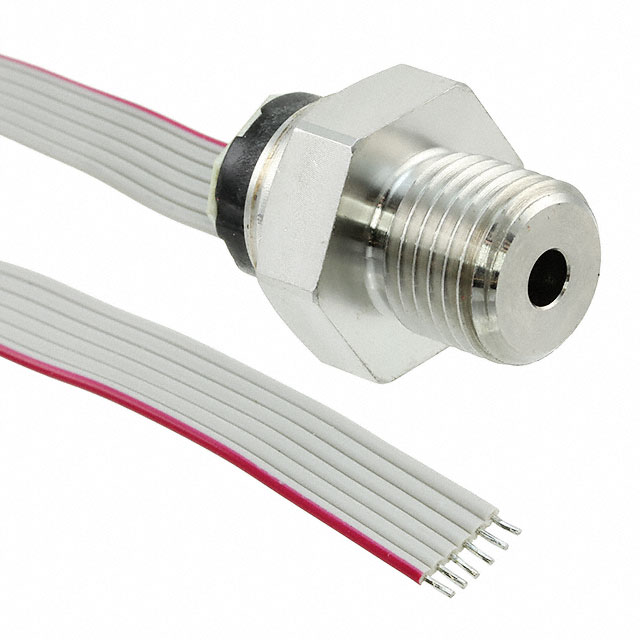

85-100G-5R
SENSOR 100PSIG 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 85-100G-5R, a pressure sensor with a 100 PSIG (689.48 kPa) operating pressure range. This vented gauge sensor offers a 0 mV to 100 mV output, utilizing a Wheatstone bridge for signal generation. Designed for board mount applications, it features temperature compensation for enhanced performance across its -40°C to 125°C operating temperature range. The sensor has an accuracy of ±0.1% and a maximum pressure capability of 300 PSI (2068.43 kPa). The component is housed in a cylinder package with cable and connector termination. This pressure sensor is suitable for demanding applications within the industrial and medical sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | Cylinder |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Cable with Connector |
| Voltage - Supply | - |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 300PSI (2068.43kPa) |
