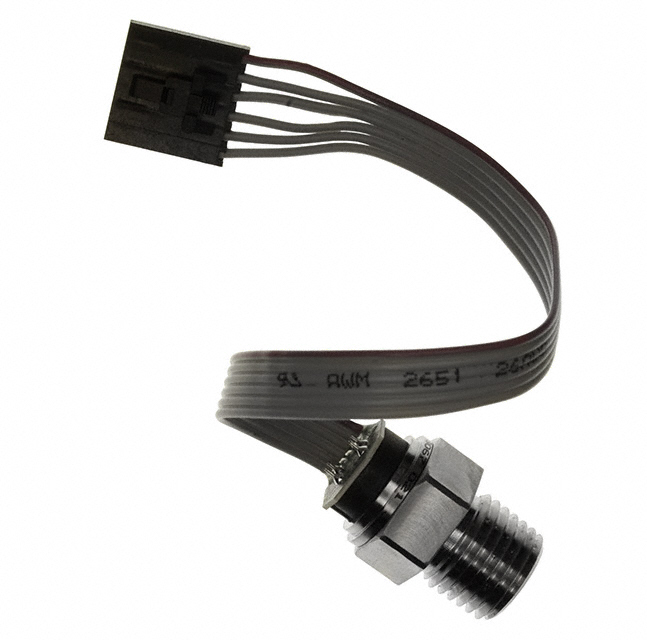

85-015A-4C
SENSOR 15PSIA 1/4NPT RIBN W/CONNManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 85-015A-4C is an absolute pressure sensor with a 15 PSI (103.42 kPa) operating range. This component features a Wheatstone bridge output, delivering a 0 mV to 100 mV signal across its operating temperature range of -40°C to 125°C. It offers a high accuracy of ±0.1%. The device is designed for board mounting applications and includes temperature compensation for enhanced performance. The maximum pressure rating is 45 PSI (310.26 kPa). This sensor is supplied in bulk packaging and features a cable with a connector for termination. Applications for this sensor can be found in industrial and aerospace sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Cable with Connector |
| Voltage - Supply | - |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 45PSI (310.26kPa) |
