82CV-005G-R
SENSOR 5PSIG 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

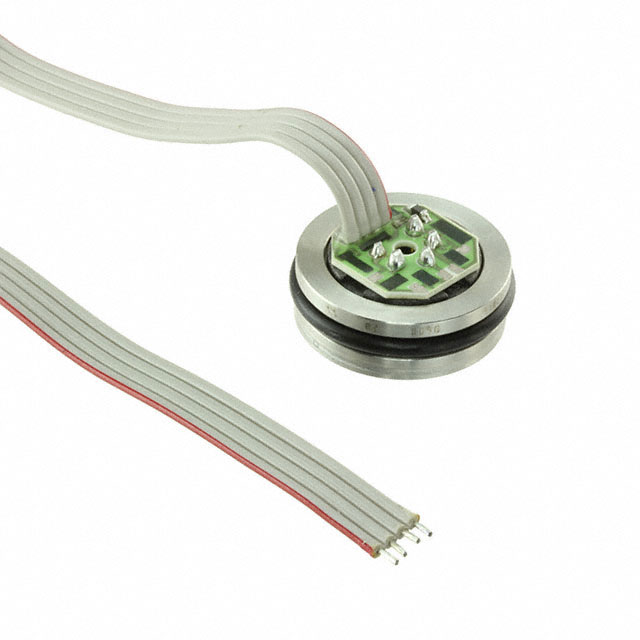

Pressure Sensor 5PSI (34.47kPa) Vented Gauge 0 mV ~ 100 mV (10V) Cylinder
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV (10V) |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.2% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Connector |
| Voltage - Supply | 10V ~ 14V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 15PSI (103.42kPa) |
