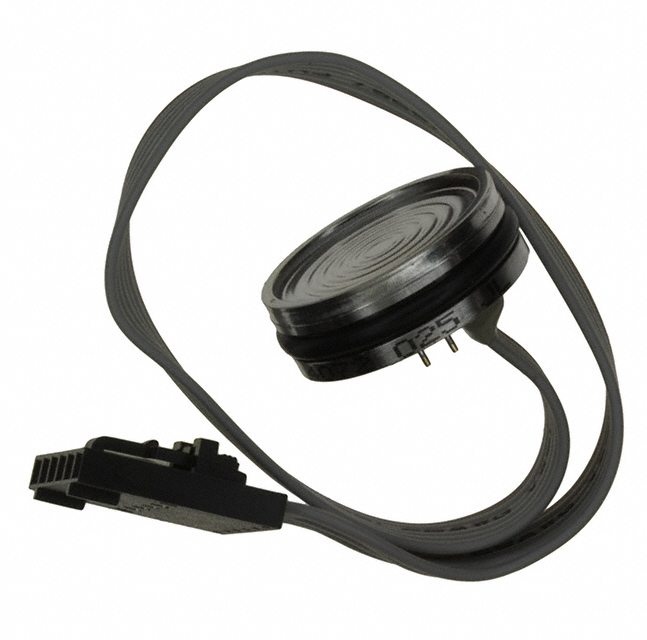

82-100G-C
SENSOR 100PSIG 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 82-100G-C is a Vented Gauge pressure sensor designed for precise pressure monitoring. This component operates with a pressure range of 0 to 100 PSI (689.48kPa), featuring a maximum pressure capability of 300 PSI (2068.43kPa). The output signal is provided as a 0 mV to 100 mV range, utilizing a Wheatstone bridge configuration for high accuracy, specified at ±0.1%. Engineered for demanding environments, it maintains reliable performance across an operating temperature range of -40°C to 125°C, with integrated temperature compensation. The 82-100G-C is suitable for board mount applications and features a cable with connector termination. Industries benefiting from this sensor include industrial automation, medical devices, and HVAC systems. The component is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | - |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Cable with Connector |
| Voltage - Supply | - |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 300PSI (2068.43kPa) |
